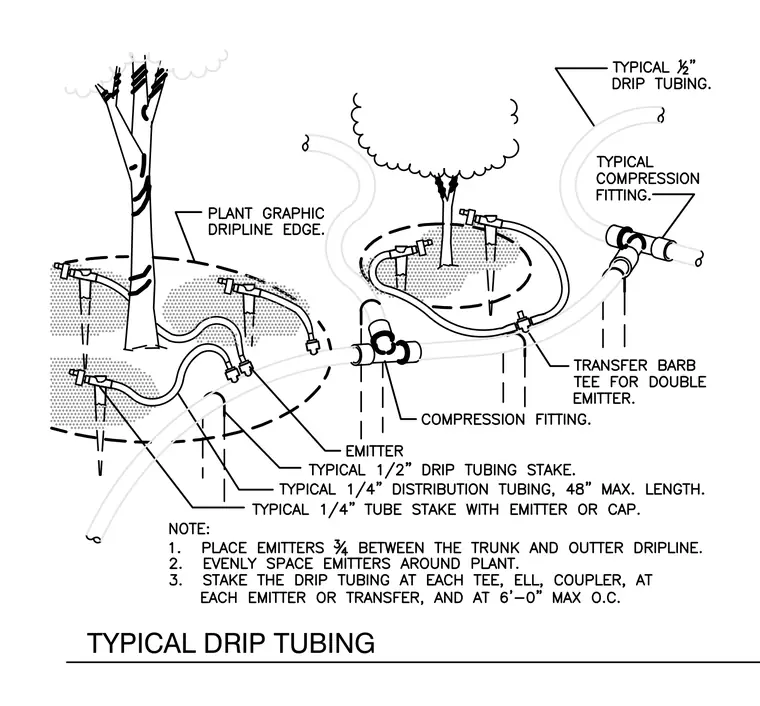

Landscape irrigation assembly utilizing typical half-inch drip tubing connected via compression fittings and transfer barb tees for double emitters. Typical one-quarter-inch distribution tubing extends a maximum length of forty-eight inches from the lateral line to individual plant locations, secured with tube stakes and equipped with emitters or caps. Emitters are placed three-quarters of the distance between the tree trunk and the outer dripline, evenly spaced around the plant. Drip tubing is staked at each tee, ell, coupler, emitter, or transfer point, and at a maximum spacing of six feet on center.
