Quick Coupling Valve in Plastic Box Detail

Materials

Brick

Elements

Beams Site / Paving

Connections

Bolted Connection

About this detail

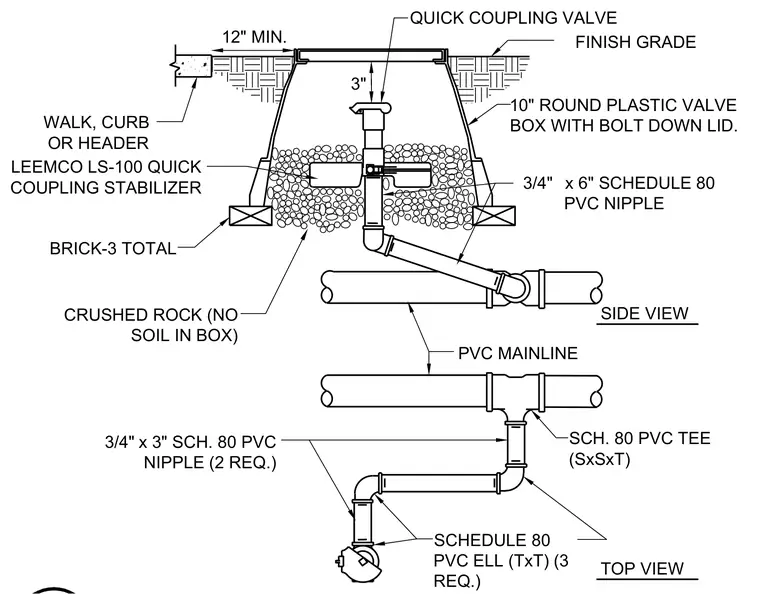

A quick coupling valve connects to a PVC mainline through a series of schedule 80 PVC fittings, nipples, and a Leemco LS-100 quick coupling stabilizer. The assembly is housed within a ten-inch round plastic valve box with a bolt-down lid, set flush with the finish grade and adjacent to a walk, curb, or header. The interior of the box is filled with crushed rock free of soil, resting on three total bricks at the base. Side and top views detail the alignment of the three-quarter-inch by six-inch and three-quarter-inch by three-inch schedule 80 PVC nipples, schedule 80 PVC tee, and three schedule 80 PVC elbows.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
