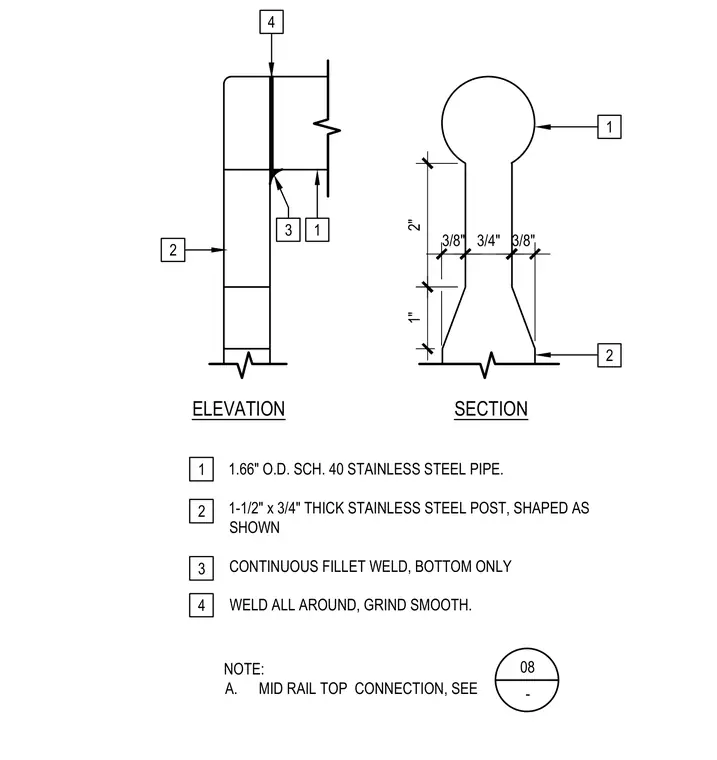

A 1.66-inch outer diameter schedule 40 stainless steel pipe connects to a 1-1/2-inch by 3/4-inch thick stainless steel post shaped as shown. The assembly uses a continuous fillet weld on the bottom only and a weld all around that is ground smooth.
1" 2" 3/8" 3/4" 2 1 2 3 4 3/8" 1 NOTE: A. MID RAIL TOP CONNECTION, SEE 08 - 1.66" O.D. SCH. 40 STAINLESS STEEL PIPE. 1-1/2" x 3/4" THICK STAINLESS STEEL POST, SHAPED AS SHOWN CONTINUOUS FILLET WELD, BOTTOM ONLY WELD ALL AROUND, GRIND SMOOTH. 1 2 3 4 SECTION ELEVATION
