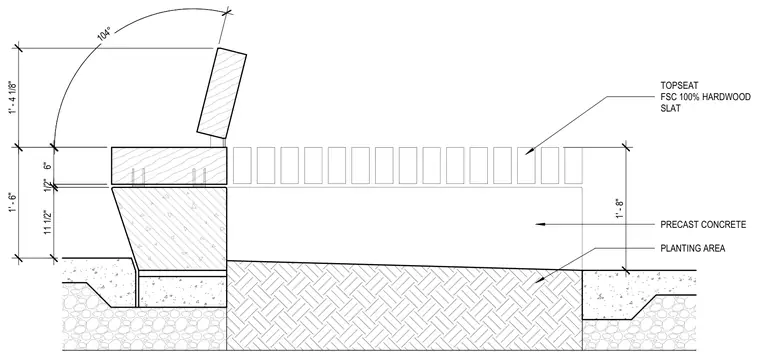

A precast concrete seatwall features a top seat and backrest constructed from FSC 100 percent hardwood slats. The horizontal seat rests on a precast concrete base, which sits adjacent to a planting area. Vertical and horizontal dimensions establish the seat height, backrest angle of 104 degrees, and overall profile.
1' - 6" 6" 1/2" 11 1/2" 1' - 8" TOPSEAT FSC 100% HARDWOOD SLAT PRECAST CONCRETE PLANTING AREA 104° 1' - 4 1/8"
