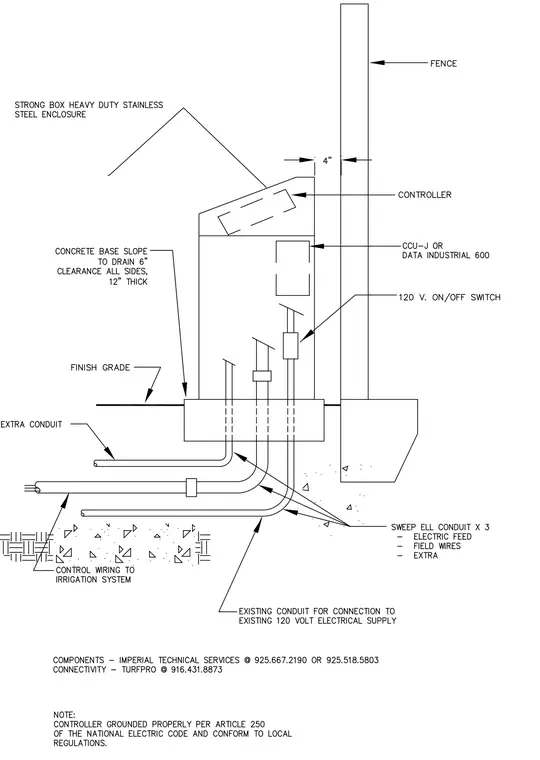

This assembly consists of a Strong Box heavy-duty stainless steel enclosure mounted on a twelve-inch thick concrete base. The concrete base is sloped to drain with six inches of clearance provided on all sides. Electrical service is provided via three sweep elbow conduits, which accommodate the electric feed, field wires, and an extra conduit for future use. An existing conduit connects to the one hundred twenty volt electrical supply, and a one hundred twenty volt on/off switch is integrated within the enclosure. The controller includes a CCU-J or Data Industrial 600 unit and must be grounded in accordance with Article 250 of the National Electric Code and local regulations.
