Architectural · L-6GRGB

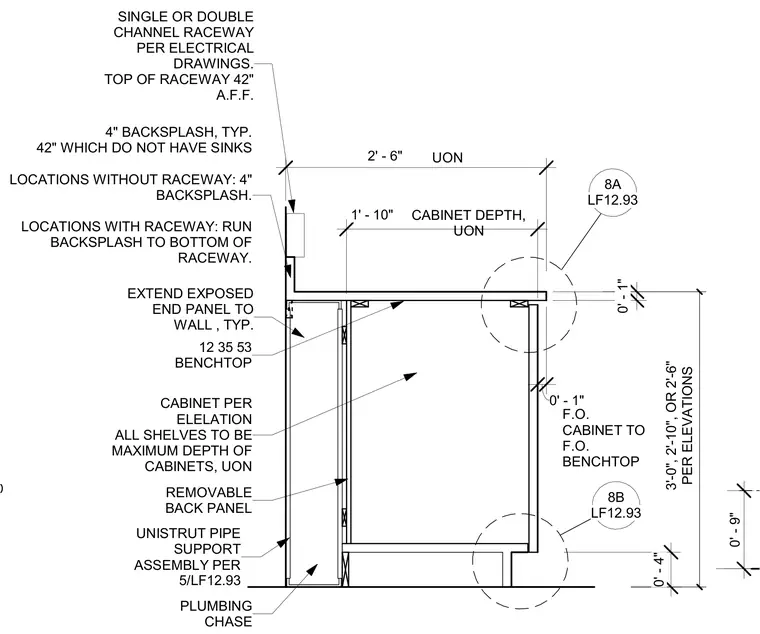

Typical Base Cabinet Section

Materials

Elements

About this detail

This typical base cabinet assembly features a benchtop with a four-inch typical backsplash, extending to the bottom of an electrical raceway where applicable or set at forty-two inches above finished floor for single or double channel raceways. The cabinet includes a removable back panel concealing a plumbing chase and an internal Unistrut pipe support assembly per the designated reference. Shelves are set to the maximum depth of the cabinets unless otherwise noted. Exposed end panels extend to the wall, and the overall cabinet depth measures two feet six inches unless noted otherwise with heights varying per elevations.
