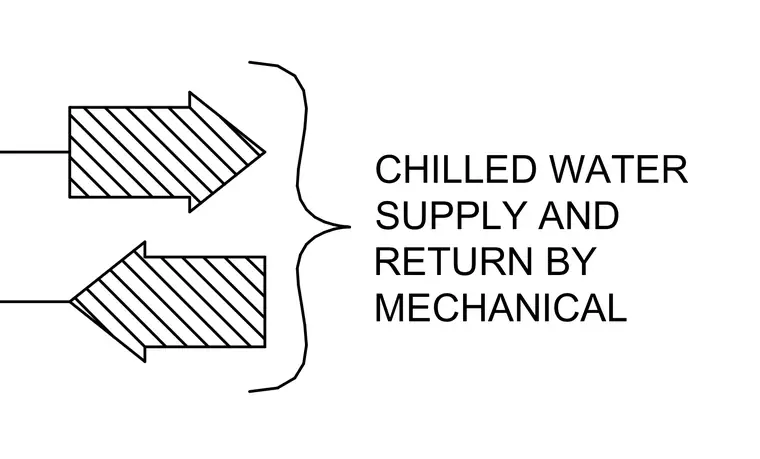

Chilled water supply and return lines are designated for installation by the mechanical trade. The diagram utilizes directional arrows linked with a brace to indicate flow paths for the supply and return piping.
