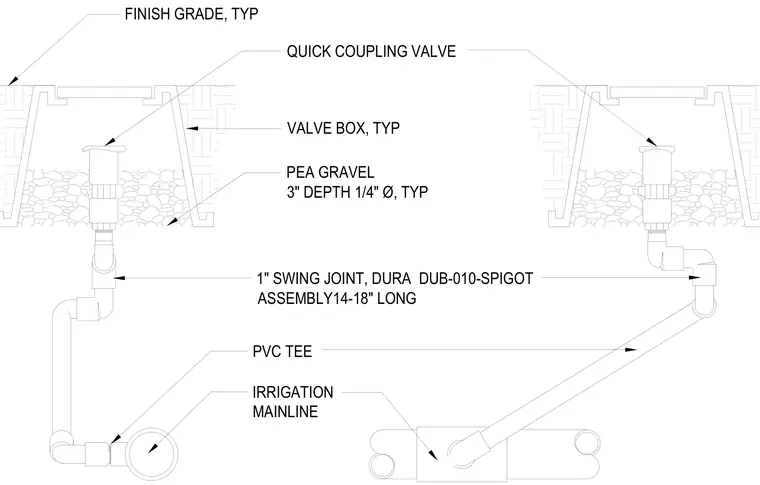

A quick coupling valve connects to a 1-inch swing joint assembly measuring fourteen to eighteen inches long, which ties into a PVC tee on the irrigation mainline. The valve sits inside a typical valve box surrounded by three inches of one-quarter-inch diameter pea gravel for drainage. The top of the valve box aligns flush with the typical finish grade.
FINISH GRADE, TYP QUICK COUPLING VALVE VALVE BOX, TYP PEA GRAVEL 3" DEPTH 1/4" Ø, TYP 1" SWING JOINT, DURA DUB-010-SPIGOT ASSEMBLY14-18" LONG PVC TEE IRRIGATION MAINLINE
