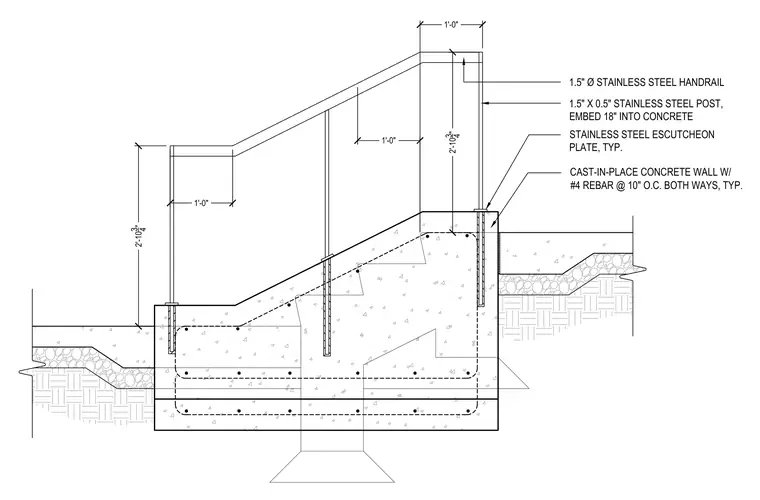

A 1.5-inch diameter stainless steel handrail is supported by 1.5-inch by 0.5-inch stainless steel posts embedded 18 inches into a cast-in-place concrete wall. A typical stainless steel escutcheon plate conceals the base penetration at the top of the concrete. The cast-in-place concrete wall is reinforced with number 4 rebar at 10 inches on center both ways.
1'-0" 2'-10 3 4 " 2'-10 3 4 " 1'-0" 1.5" Ø STAINLESS STEEL HANDRAIL 1.5" X 0.5" STAINLESS STEEL POST, EMBED 18" INTO CONCRETE STAINLESS STEEL ESCUTCHEON PLATE, TYP. 1'-0" CAST-IN-PLACE CONCRETE WALL W/ #4 REBAR @ 10" O.C. BOTH WAYS, TYP.
