Landscape · L-6A89W

Floor Opening

Units: imperial
Sheet: L2
Discipline: Landscape

Elements

Floors / Slabs Roof / Floor Openings

Text on the drawing

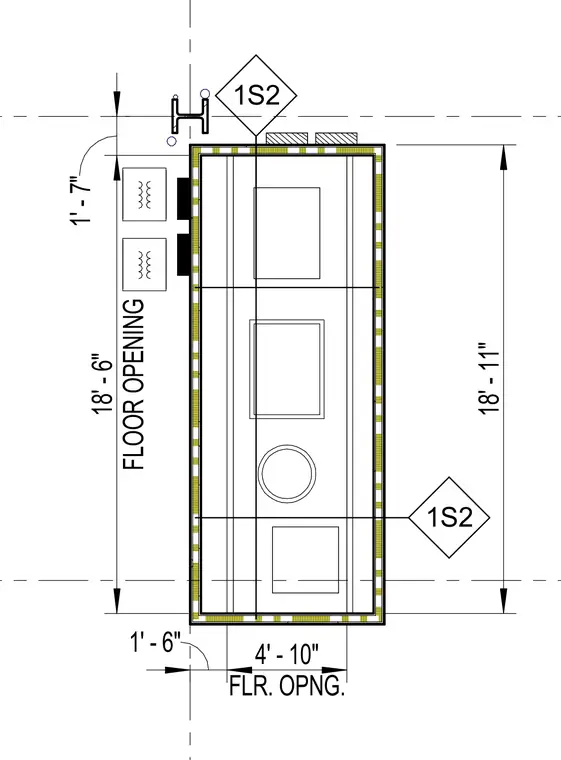

1S2 FLOOR OPENING 18' - 6" 1' - 7" 1' - 6" FLR. OPNG. 4' - 10" 18' - 11" 1S2
