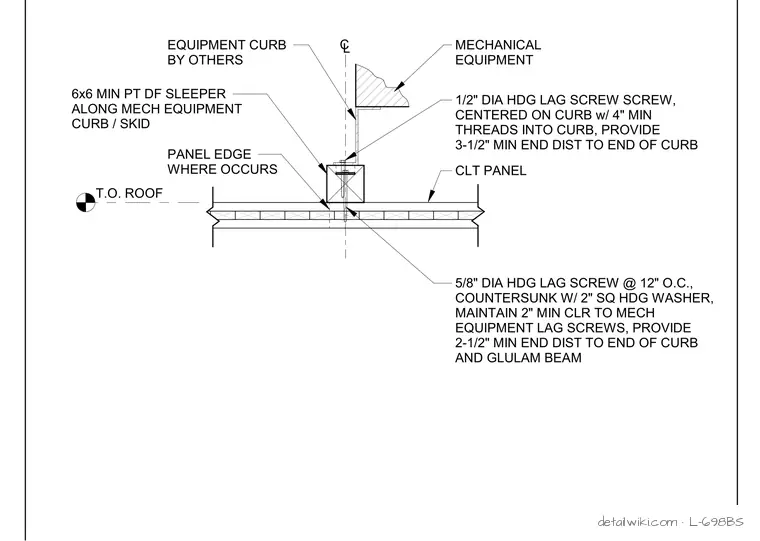

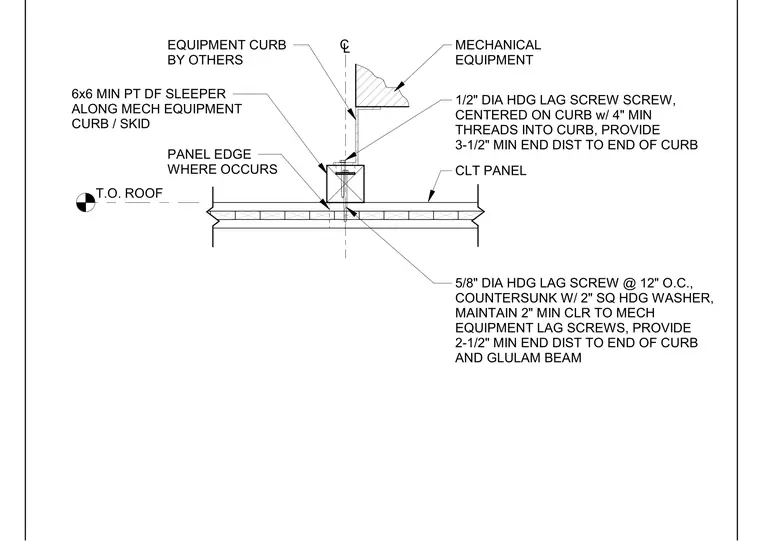

Mechanical equipment rests on a curb supported by a 6x6 minimum pressure-treated Douglas-fir sleeper running along the equipment skid over a cross-laminated timber roof panel. A 1/2-inch diameter hot-dipped galvanized lag screw centers on the curb with a 4-inch minimum thread penetration and a 3-1/2-inch minimum end distance to the end of the curb. A 5/8-inch diameter hot-dipped galvanized lag screw spaced at 12 inches on center fastens the assembly through a countersunk 2-inch square hot-dipped galvanized washer, maintaining a 2-inch minimum clearance to the equipment lag screws and a 2-1/2-inch minimum end distance to the end of the curb.
T.O. ROOF CLT PANEL MECHANICAL EQUIPMENT EQUIPMENT CURB BY OTHERS PANEL EDGE WHERE OCCURS C L 6x6 MIN PT DF SLEEPER ALONG MECH EQUIPMENT CURB / SKID 1/2" DIA HDG LAG SCREW SCREW, CENTERED ON CURB w/ 4" MIN THREADS INTO CURB, PROVIDE 3-1/2" MIN END DIST TO END OF CURB 5/8" DIA HDG LAG SCREW @ 12" O.C., COUNTERSUNK W/ 2" SQ HDG WASHER, MAINTAIN 2" MIN CLR TO MECH EQUIPMENT LAG SCREWS, PROVIDE 2-1/2" MIN END DIST TO END OF CURB AND GLULAM BEAM
