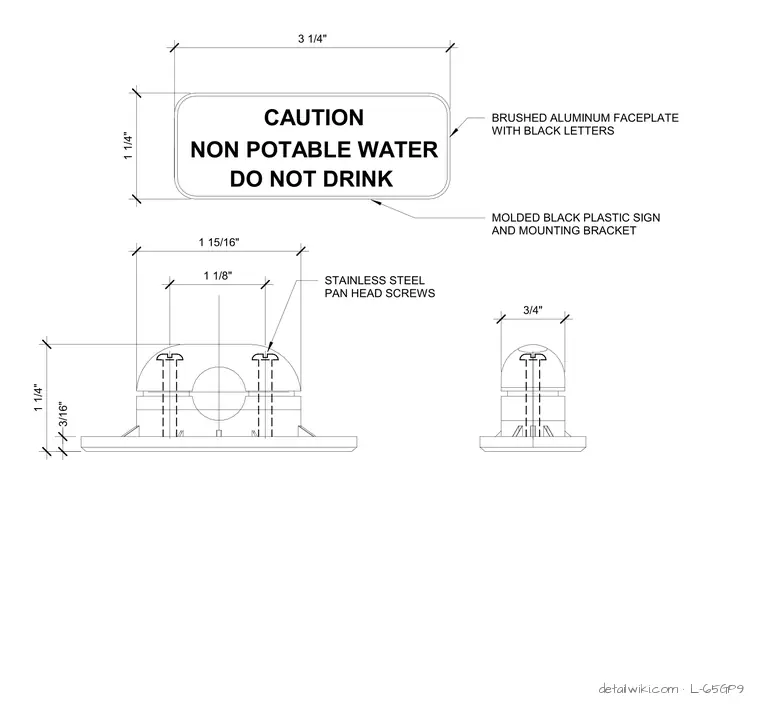

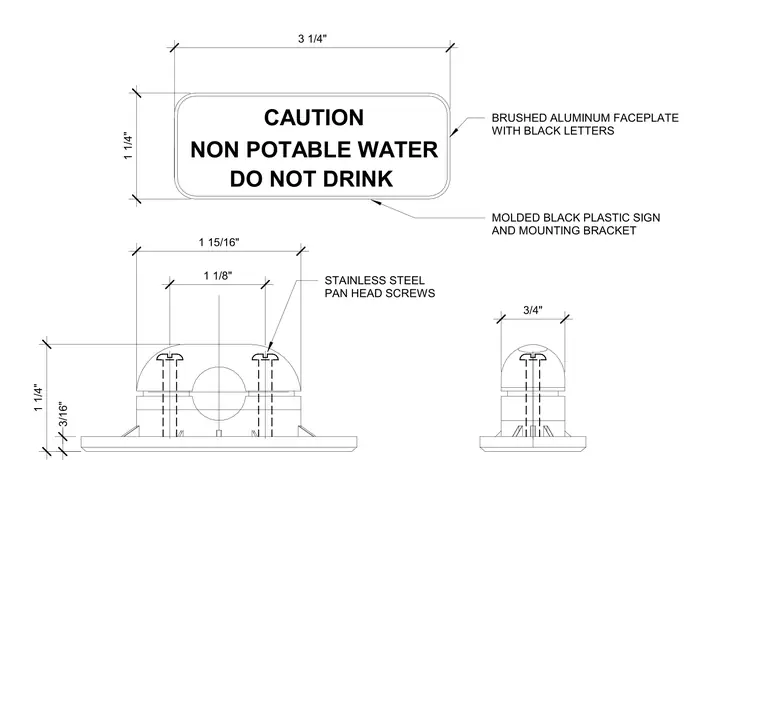

The assembly consists of a brushed aluminum faceplate with black lettering reading caution non potable water do not drink, measuring three and one-quarter inches wide by one and one-quarter inches high. The faceplate attaches to a molded black plastic sign and mounting bracket secured by stainless steel pan head screws. Overall dimensions and mounting hole spacings are detailed in elevation and side views.
DO NOT DRINK CAUTION BRUSHED ALUMINUM FACEPLATE WITH BLACK LETTERS NON POTABLE WATER 3 1/4" 1 1/4" 1 1/8" 1 15/16" STAINLESS STEEL PAN HEAD SCREWS 3/16" 1 1/4" 3/4" MOLDED BLACK PLASTIC SIGN AND MOUNTING BRACKET
