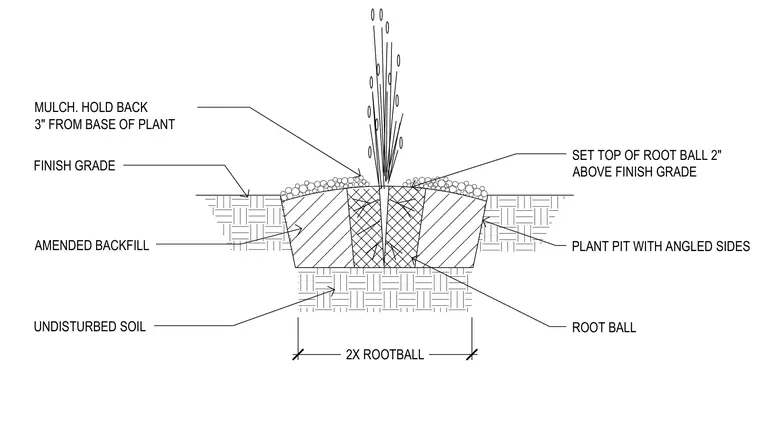

Perennial planting detail showing a root ball set two inches above finish grade in a plant pit with angled sides sized twice the root ball width. The pit is backfilled with amended soil over undisturbed soil. Mulch is applied around the plant base and held back three inches from the stem.
ROOT BALL MULCH. HOLD BACK 3" FROM BASE OF PLANT FINISH GRADE AMENDED BACKFILL UNDISTURBED SOIL SET TOP OF ROOT BALL 2" ABOVE FINISH GRADE PLANT PIT WITH ANGLED SIDES 2X ROOTBALL
