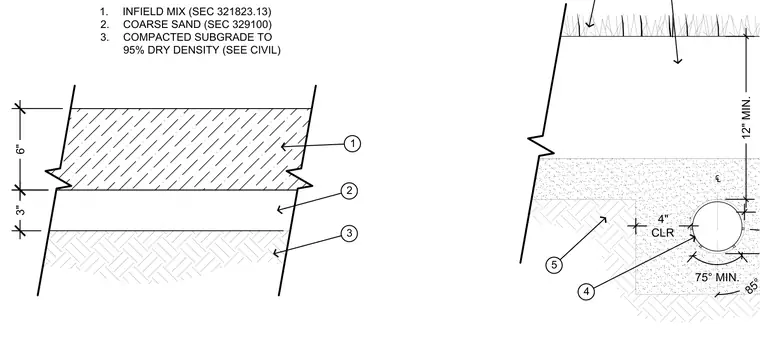

An athletic field surface profile consists of a six-inch layer of infield mix installed over a three-inch layer of coarse sand, supported by a compacted subgrade. The subgrade is compacted to ninety-five percent dry density per civil engineering specifications. A subdrain pipe is embedded within the profile with specified clearances and bedding angles.
1. INFIELD MIX (SEC 321823.13) 2. COARSE SAND (SEC 329100) 3. COMPACTED SUBGRADE TO 95% DRY DENSITY (SEE CIVIL) 6" 3" 1 2 3 4" CLR 12" MIN. ℄ 75° MIN. 85° MAX 5 4
