Concrete pavers are set on a one-inch layer of bedding sand over a four-inch Class II base compacted to ninety-five percent relative density. The edge is restrained by a six-by-six-inch concrete band constructed from 2,500 PSI concrete of Class 520-C-2500. A single number three reinforcing bar runs continuously through the concrete band. The entire assembly bears upon an engineered fill subgrade.

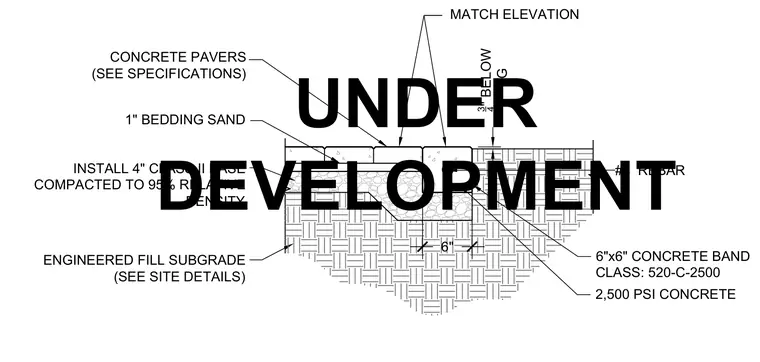

1" BEDDING SAND CONCRETE PAVERS (SEE SPECIFICATIONS) ENGINEERED FILL SUBGRADE (SEE SITE DETAILS) 6" INSTALL 4" CLASS II BASE COMPACTED TO 95% RELATIVE DENSITY 6"x6" CONCRETE BAND CLASS: 520-C-2500 2,500 PSI CONCRETE #3 REBAR MATCH ELEVATION 3 4 " BELOW FG UNDER DEVELOPMENT
