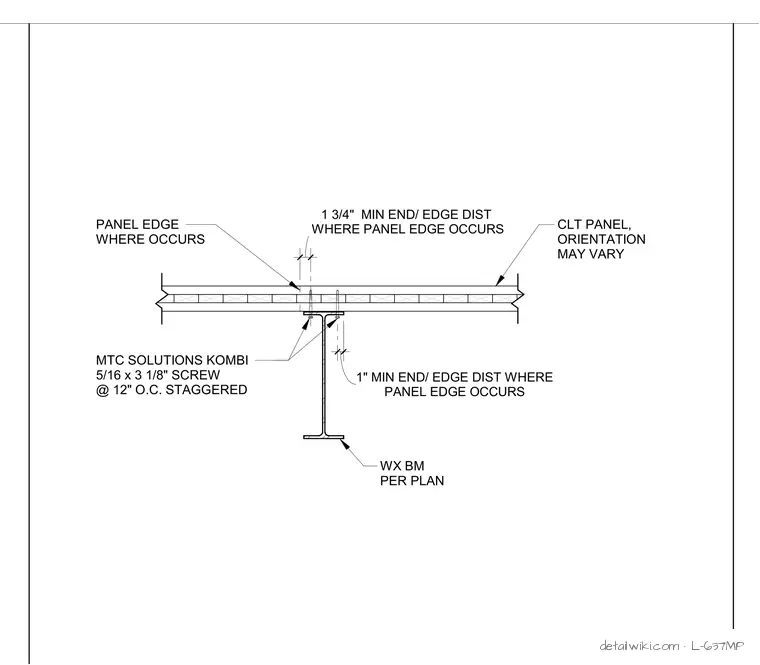

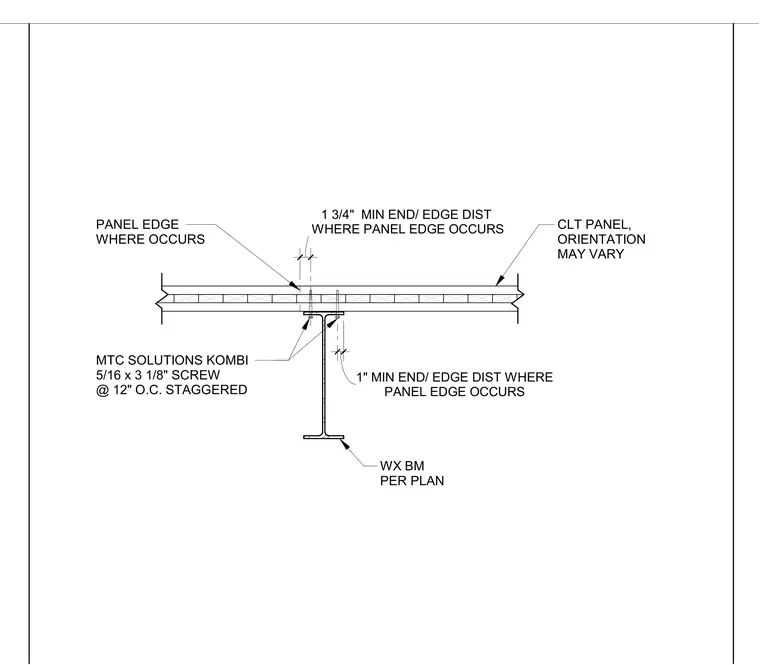

A cross-laminated timber panel is supported by a wide flange steel beam sized per plan. The cross-laminated timber panel orientation may vary. Fastening is achieved using MTC Solutions Kombi 5/16 inch by 3 1/8 inch screws spaced at 12 inches on center staggered. Minimum end and edge distances are maintained at 1 inch where the panel edge occurs, or 1 3/4 inches where specified.
CLT PANEL, ORIENTATION MAY VARY WX BM PER PLAN PANEL EDGE OCCURS 1" MIN END/ EDGE DIST WHERE MTC SOLUTIONS KOMBI 5/16 x 3 1/8" SCREW @ 12" O.C. STAGGERED WHERE PANEL EDGE OCCURS 1 3/4" MIN END/ EDGE DIST PANEL EDGE WHERE OCCURS
