Landscape · L-62GGB

Synthetic Turf Curb

Materials

Concrete Timber / Wood Stone

Elements

Drainage Site / Paving Anchors / Embeds

Connections

Base Plate / Anchorage Bolted Connection

About this detail

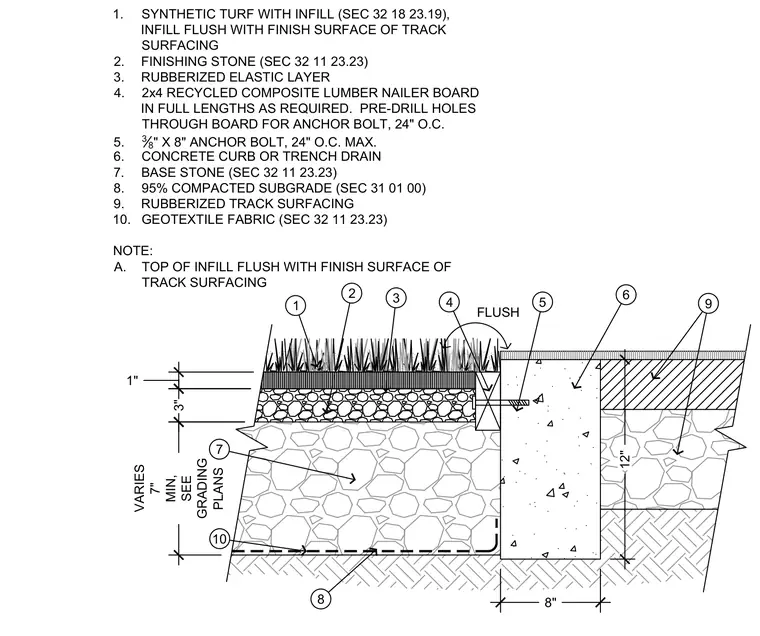

Synthetic turf terminates against a concrete curb or trench drain. A 2x4 recycled composite lumber nailer board is anchored to the face of the 8-inch by 12-inch concrete curb using 3/8-inch by 8-inch anchor bolts spaced at 24 inches on center maximum. The synthetic turf with infill and rubberized elastic layer rests upon a finishing stone course, geotextile fabric, base stone, and a 95 percent compacted subgrade. The rubberized track surfacing abuts the opposite side of the concrete curb, maintaining a flush finish surface with the turf infill.
