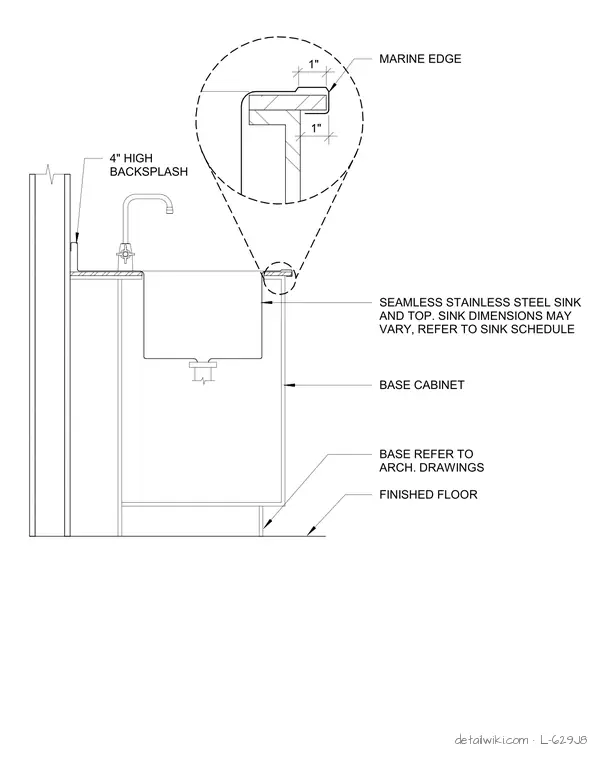

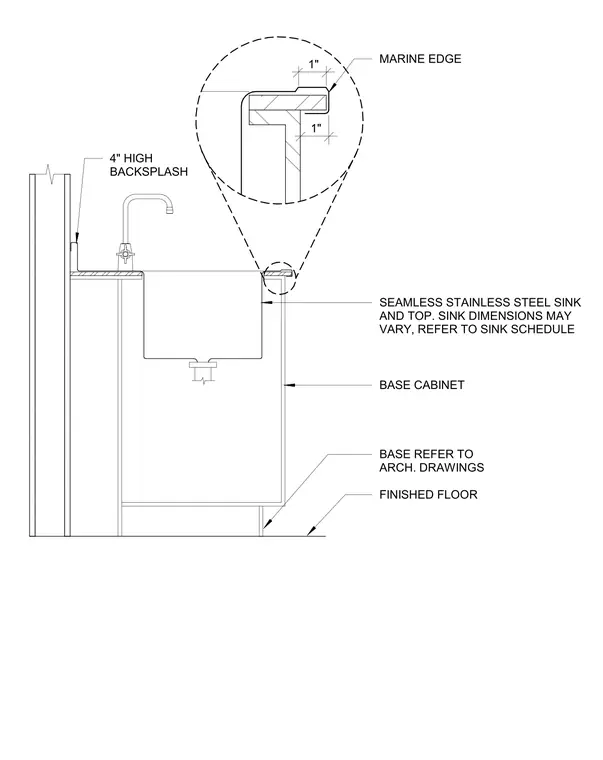

This assembly consists of a seamless stainless steel sink and top supported by a base cabinet over a finished floor. The countertop features a four inch high backsplash and a one inch marine edge detail with specific dimensional clearances shown in the enlarged callout. The base construction and dimensions are coordinated with architectural drawings and the project sink schedule.
4" HIGH BACKSPLASH BASE CABINET FINISHED FLOOR MARINE EDGE BASE REFER TO ARCH. DRAWINGS SEAMLESS STAINLESS STEEL SINK AND TOP. SINK DIMENSIONS MAY VARY, REFER TO SINK SCHEDULE 1" 1"
