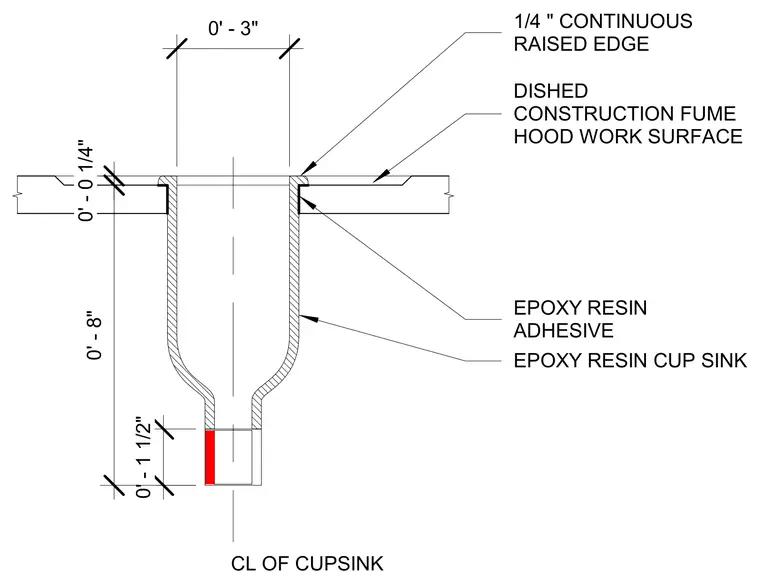

An epoxy resin cupsink is set flush into a dished construction fume hood work surface with a one-quarter-inch continuous raised edge. The cupsink is secured using epoxy resin adhesive around the perimeter flange. The assembly measures three inches in diameter with an overall depth of eight inches and a one-and-a-half-inch outlet spigot.
EPOXY RESIN CUP SINK DISHED CONSTRUCTION FUME HOOD WORK SURFACE EPOXY RESIN ADHESIVE 1/4 " CONTINUOUS RAISED EDGE CL OF CUPSINK 0' - 3" 0' - 0 1/4" 0' - 1 1/2" 0' - 8"
