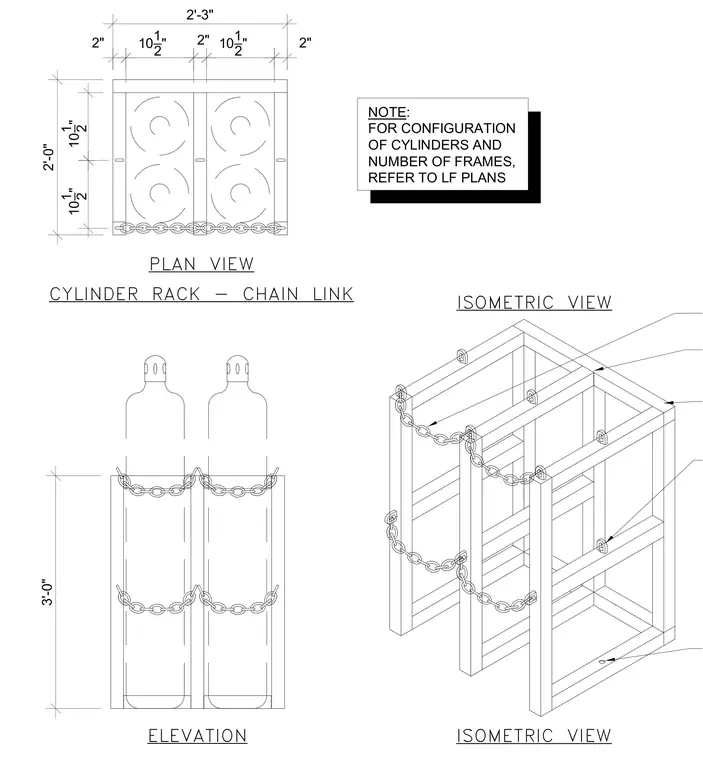

Plan, elevation, and isometric views define a chain-link gas cylinder storage rack with overall dimensions of 2'-3" wide by 2'-0" deep and 3'-0" high, alongside individual cylinder compartments measuring 10-1/2" square. Security chains span across the front at two heights to secure the stored cylinders. A general note directs the builder to landscape plans for the total configuration of cylinders and number of frames.
ISOMETRIC VIEW ELEVATION ISOMETRIC VIEW PLAN VIEW CYLINDER RACK - CHAIN LINK 10 1_ 2 " 10 1_ 2 " 10 1_ 2 " 2" 2" 10 1_ 2 " 2'-3" 2'-0" 3'-0" NOTE : FOR CONFIGURATION OF CYLINDERS AND NUMBER OF FRAMES, REFER TO LF PLANS 2"
