Wood Clad Light Fixture

Materials

Concrete Reinforced Concrete Timber / Wood

Elements

About this detail

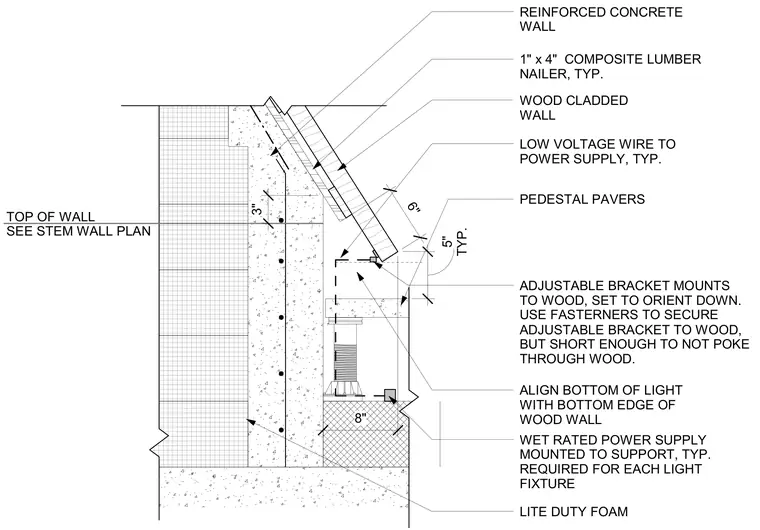

An eight-inch reinforced concrete wall supports a wood-cladded wall assembly featuring one-inch by four-inch typical composite lumber nailers. A low-voltage light fixture mounts to the wood using an adjustable bracket, with fasteners sized short enough to avoid poking through the wood face. The bottom edge of the light aligns with the bottom edge of the wood wall, set to orient downward. A wet-rated power supply is mounted to the support for each light fixture. Pedestal pavers sit on lite-duty foam adjacent to the wall base.
