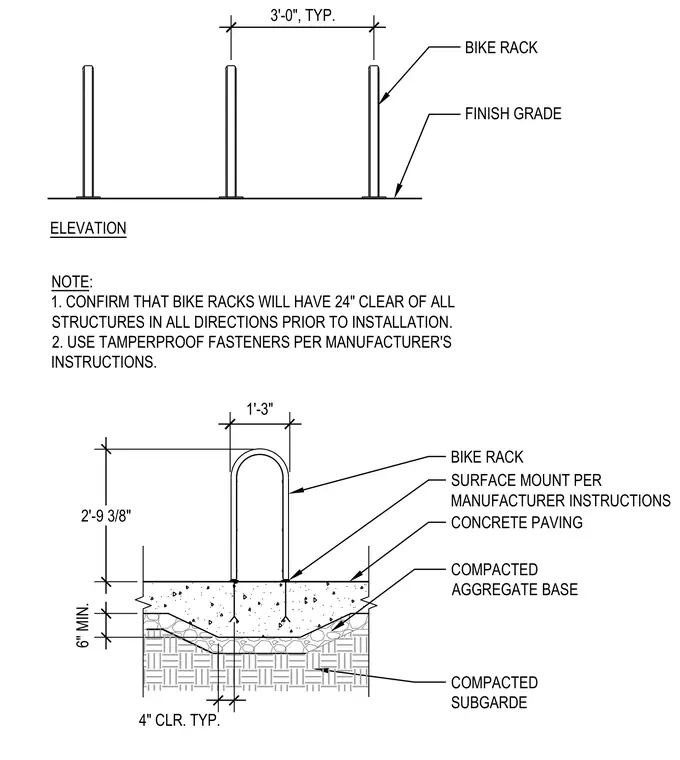

A surface-mounted bike rack is anchored directly to concrete paving with tamperproof fasteners installed per the manufacturer's instructions. The concrete slab rests on a compacted aggregate base and compacted subgrade, maintaining a minimum six-inch depth. Installation requires confirming a twenty-four-inch clearance from all surrounding structures in every direction.
NOTE: 1. CONFIRM THAT BIKE RACKS WILL HAVE 24" CLEAR OF ALL STRUCTURES IN ALL DIRECTIONS PRIOR TO INSTALLATION. 2. USE TAMPERPROOF FASTENERS PER MANUFACTURER'S INSTRUCTIONS. ELEVATION BIKE RACK FINISH GRADE 6" MIN. BIKE RACK CONCRETE PAVING COMPACTED AGGREGATE BASE COMPACTED SUBGARDE SURFACE MOUNT PER MANUFACTURER INSTRUCTIONS 2'-9 3/8" 4" CLR. TYP. 1'-3" 3'-0", TYP.
