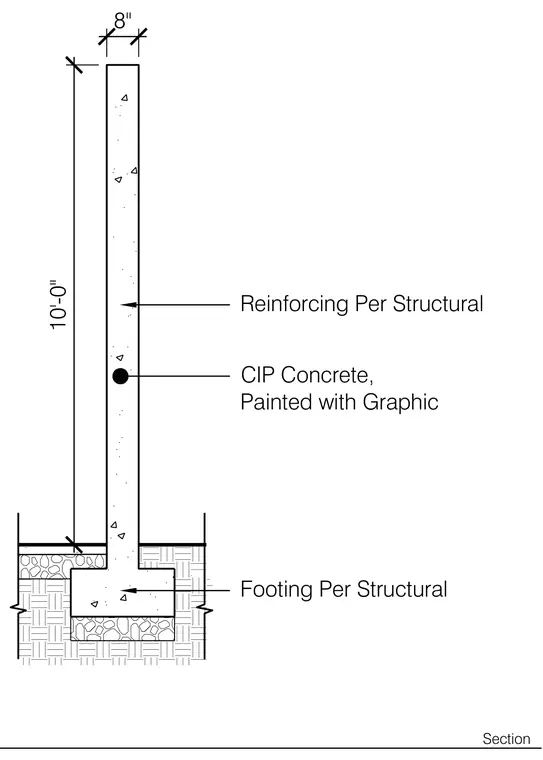

An eight-inch cast-in-place concrete wall extends ten feet above a cast-in-place concrete footing. Internal reinforcing is sized per structural drawings. The exterior concrete surface is painted with a graphic finish.
Reinforcing Per Structural Footing Per Structural 10'-0" 8" CIP Concrete, Painted with Graphic Section
