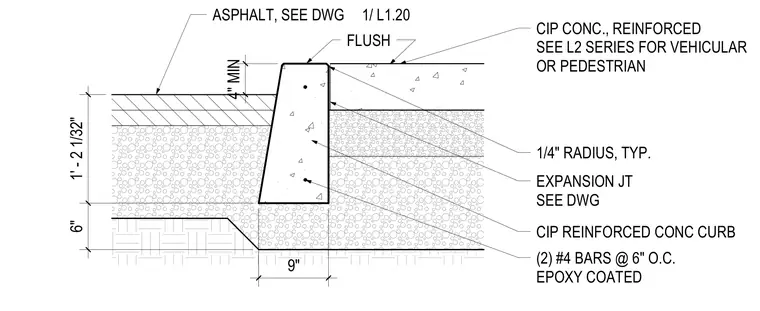

A cast-in-place reinforced concrete curb meets an asphalt pavement section, positioned flush with adjacent concrete paving. The curb measures nine inches wide at the base and contains two number four epoxy-coated reinforcing bars spaced at six inches on center. The exposed top corner features a typical one-quarter-inch radius. An expansion joint is provided as detailed on drawings for vehicular or pedestrian traffic.
4" MIN 1' - 2 1/32" 6" ASPHALT, SEE DWG CIP REINFORCED CONC CURB (2) #4 BARS @ 6" O.C. EPOXY COATED 1/4" RADIUS, TYP. 1/ L1.20 CIP CONC., REINFORCED SEE L2 SERIES FOR VEHICULAR OR PEDESTRIAN EXPANSION JT SEE DWG FLUSH 9"
