Deep Root Watering System Installation Detail

Elements

About this detail

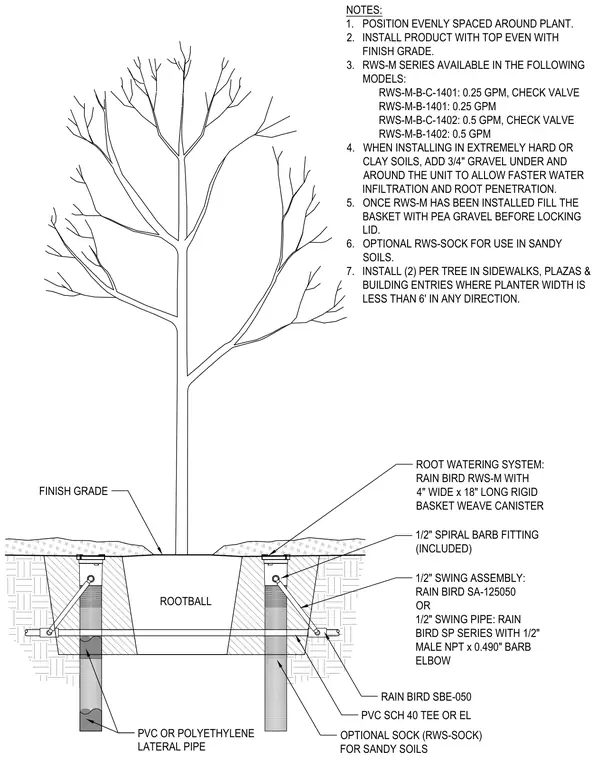

A deep root watering system is installed adjacent to a tree rootball, featuring a rigid basket weave canister positioned with its top flush to the finish grade. A half-inch swing assembly connects the canister to a PVC or polyethylene lateral pipe via a spiral barb fitting and Schedule 40 PVC tee or elbow. In extremely hard or clay soils, three-quarter-inch gravel is added under and around the unit to facilitate water infiltration, while an optional geotextile sock is specified for sandy soils. The basket is filled with pea gravel prior to locking the lid, and multiple units are installed evenly spaced around the plant depending on planter dimensions.
