Lateral drip tubing is set into amended planting soil at a specified depth below finish grade and secured in place with staples per the layout detail. Perimeter laterals are positioned two to four inches from the edge of the planting area as standard practice. The assembly is topped with a layer of mulch per specifications over the finish grade. The installation depth varies, set at six inches below turf and four inches below planting areas.

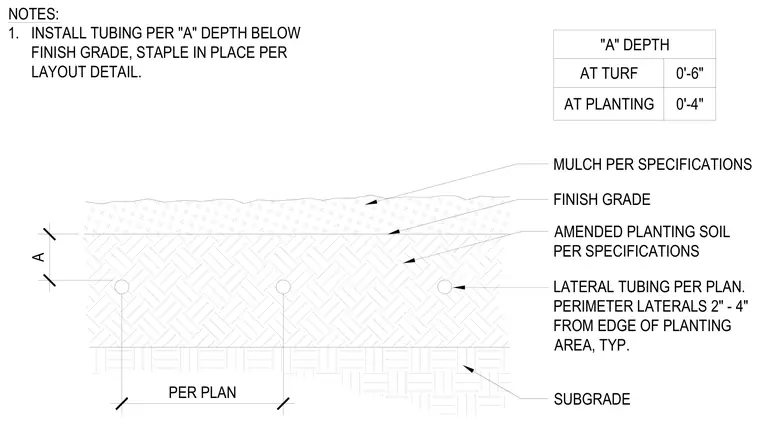

MULCH PER SPECIFICATIONS FINISH GRADE AMENDED PLANTING SOIL PER SPECIFICATIONS LATERAL TUBING PER PLAN. PERIMETER LATERALS 2" - 4" FROM EDGE OF PLANTING AREA, TYP. SUBGRADE NOTES: 1. INSTALL TUBING PER "A" DEPTH BELOW FINISH GRADE, STAPLE IN PLACE PER LAYOUT DETAIL. PER PLAN A "A" DEPTH AT TURF 0'-6" AT PLANTING 0'-4"
