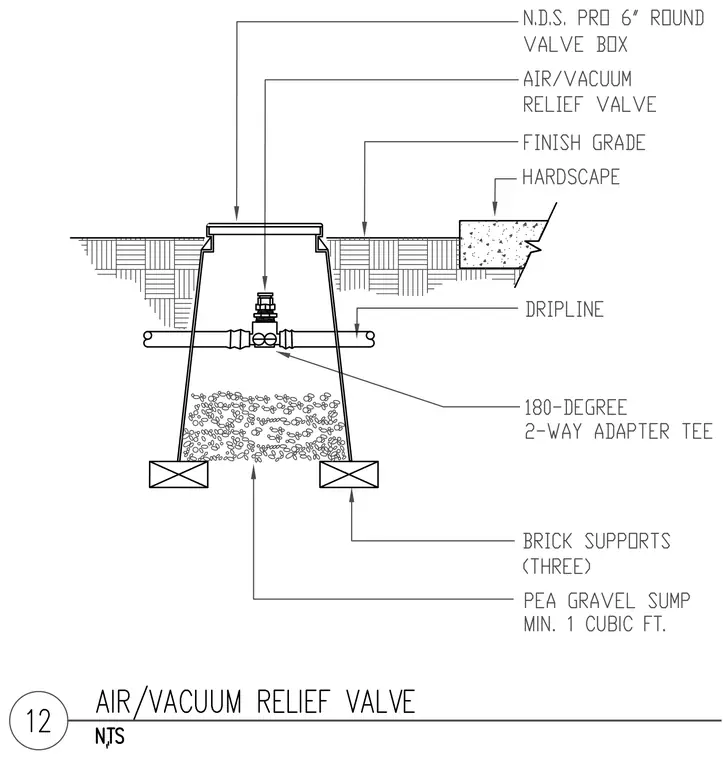

An N.D.S. Pro six-inch round valve box encloses an air and vacuum relief valve connected to a dripline via a 180-degree two-way adapter tee. The valve box rests on three brick supports set over a pea gravel sump with a minimum volume of one cubic foot. The assembly is installed flush with the finish grade adjacent to hardscape elements.
