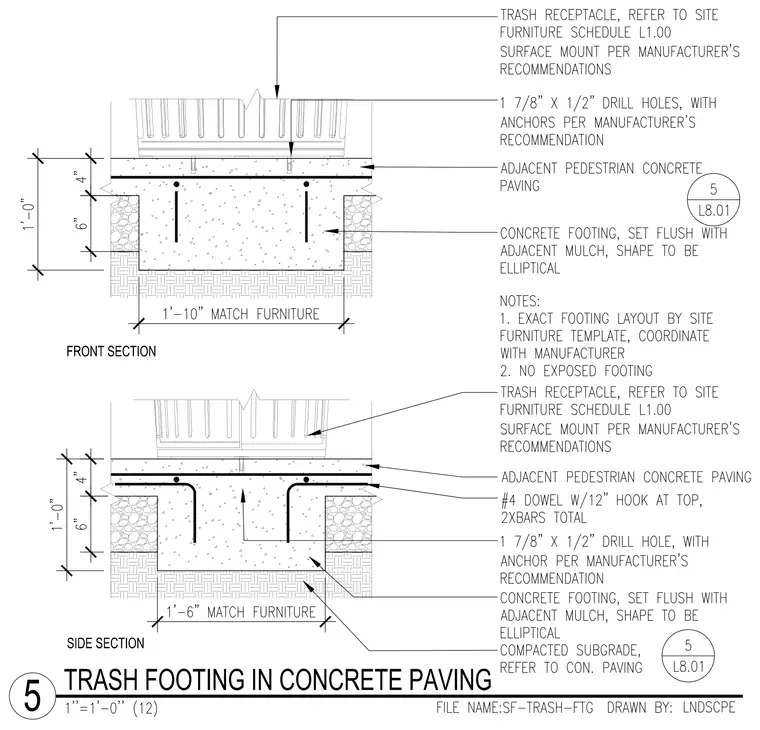

A surface-mounted trash receptacle is anchored to a concrete footing set flush with adjacent pedestrian concrete paving. The concrete footing is poured over a compacted subgrade with a total depth of one foot zero inches, featuring number four dowels with twelve-inch hooks at the top in the side section. The receptacle is secured using anchors placed in drilled holes per the manufacturer's recommendations.
