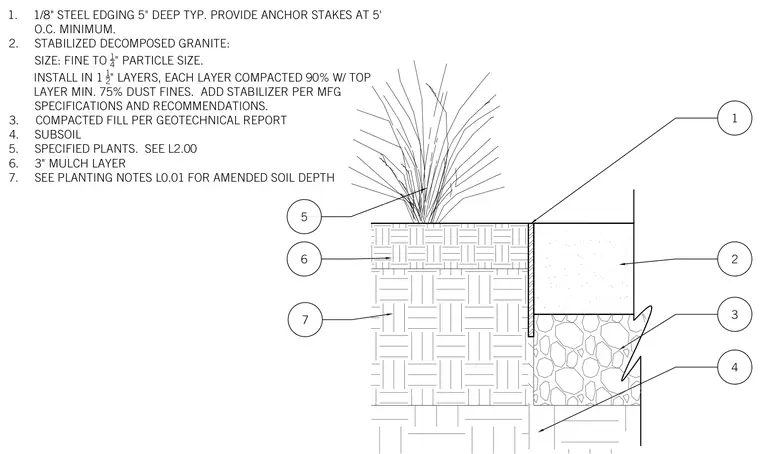

One-eighth inch thick steel edging five inches deep acts as a physical barrier between a stabilized decomposed granite path and an adjacent planting bed. The decomposed granite is installed in one and a half inch layers, with each layer compacted to ninety percent and the top layer containing a minimum of seventy-five percent dust fines, mixed with a stabilizer per manufacturer specifications. Anchor stakes are provided at a minimum of five feet on center along the steel edging. The planting bed consists of a three inch mulch layer over amended soil, subsoil, and compacted fill placed per the geotechnical report.
1. 1/8" STEEL EDGING 5" DEEP TYP. PROVIDE ANCHOR STAKES AT 5' O.C. MINIMUM. 2. STABILIZED DECOMPOSED GRANITE: SIZE: FINE TO 1 4 " PARTICLE SIZE. INSTALL IN 1 1 2 " LAYERS, EACH LAYER COMPACTED 90% W/ TOP LAYER MIN. 75% DUST FINES. ADD STABILIZER PER MFG SPECIFICATIONS AND RECOMMENDATIONS. 3. COMPACTED FILL PER GEOTECHNICAL REPORT 4. SUBSOIL 5. SPECIFIED PLANTS. SEE L2.00 6. 3" MULCH LAYER 7. SEE PLANTING NOTES L0.01 FOR AMENDED SOIL DEPTH 3 4 6 7 5 1 2
