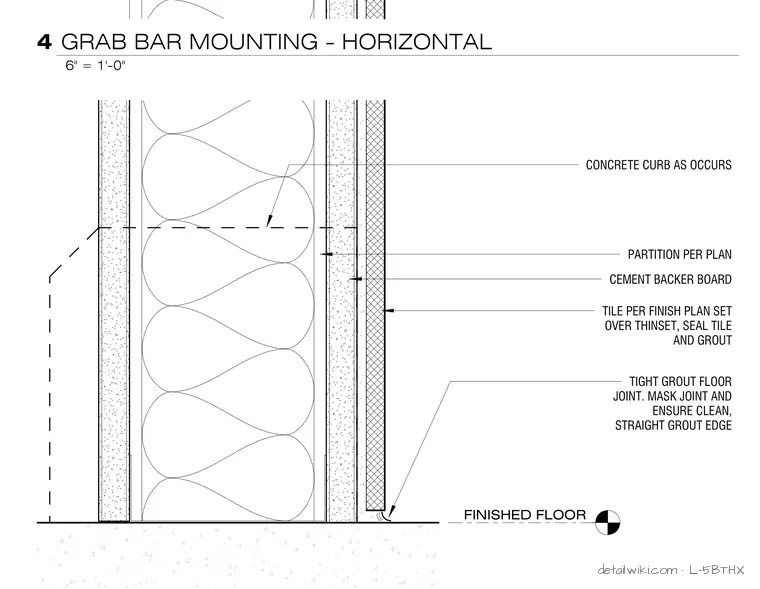

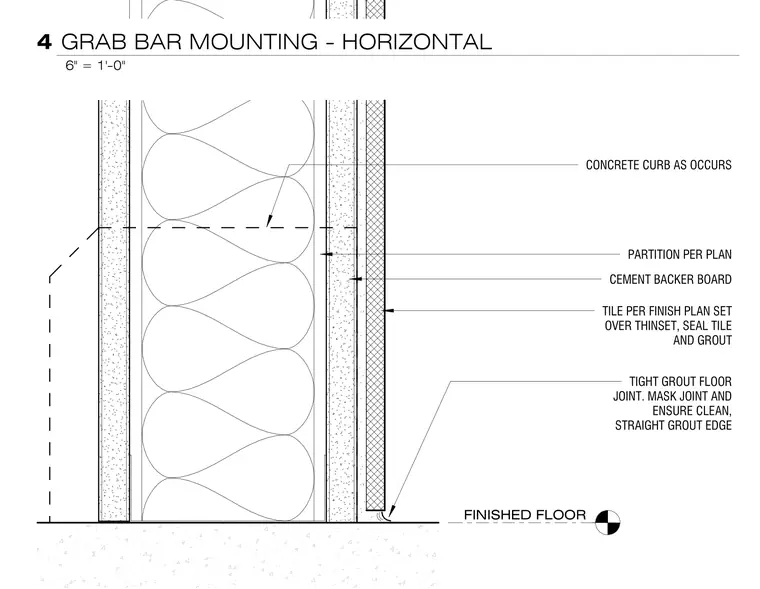

This wall section details a tiled partition assembly over a concrete curb at the finished floor. The partition consists of cement backer board set per plan with tile installed over thinset and finished with sealed tile and grout. Floor joints are grouted tightly with masked joints to ensure clean, straight edges. A concrete curb occurs as required by the layout, supporting the partition above.
CEMENT BACKER BOARD PARTITION PER PLAN TILE PER FINISH PLAN SET OVER THINSET, SEAL TILE AND GROUT TIGHT GROUT FLOOR JOINT. MASK JOINT AND ENSURE CLEAN, STRAIGHT GROUT EDGE CONCRETE CURB AS OCCURS FINISHED FLOOR 6" = 1'-0" 4 GRAB BAR MOUNTING - HORIZONTAL
