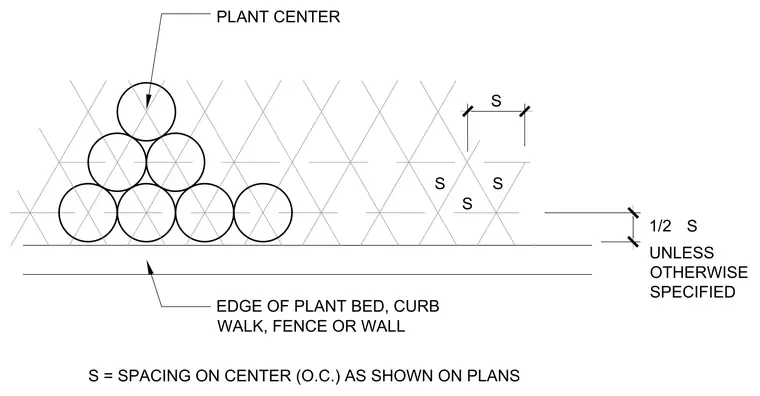

Plant centers are spaced at a distance S on center in a triangular grid pattern relative to the edge of the plant bed, curb, walk, fence, or wall. The outer plant row maintains a distance of one-half of S from the edge unless otherwise specified on the plans.
S = SPACING ON CENTER (O.C.) AS SHOWN ON PLANS S WALK, FENCE OR WALL EDGE OF PLANT BED, CURB PLANT CENTER S S 1/2 S S UNLESS OTHERWISE SPECIFIED
