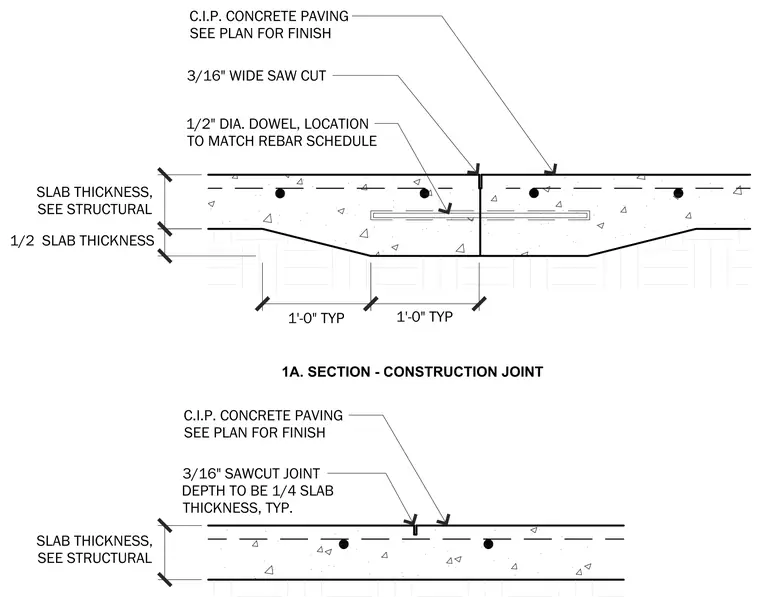

A cast-in-place concrete paving construction joint with a thickened slab edge. A one-half inch diameter dowel is embedded across the joint with its location matching the rebar schedule, set within a thickened edge measuring one-half of the slab thickness extending one foot typical on each side. The joint features a three-sixteenths inch wide saw cut at the surface. A secondary detail shows a sawcut joint with a depth equal to one-quarter of the typical slab thickness.
1A. SECTION - CONSTRUCTION JOINT 1'-0" TYP 1'-0" TYP 1/2 SLAB THICKNESS C.I.P. CONCRETE PAVING SEE PLAN FOR FINISH SLAB THICKNESS, SEE STRUCTURAL SLAB THICKNESS, SEE STRUCTURAL 3/16" WIDE SAW CUT 1/2" DIA. DOWEL, LOCATION TO MATCH REBAR SCHEDULE C.I.P. CONCRETE PAVING SEE PLAN FOR FINISH 3/16" SAWCUT JOINT DEPTH TO BE 1/4 SLAB THICKNESS, TYP.
