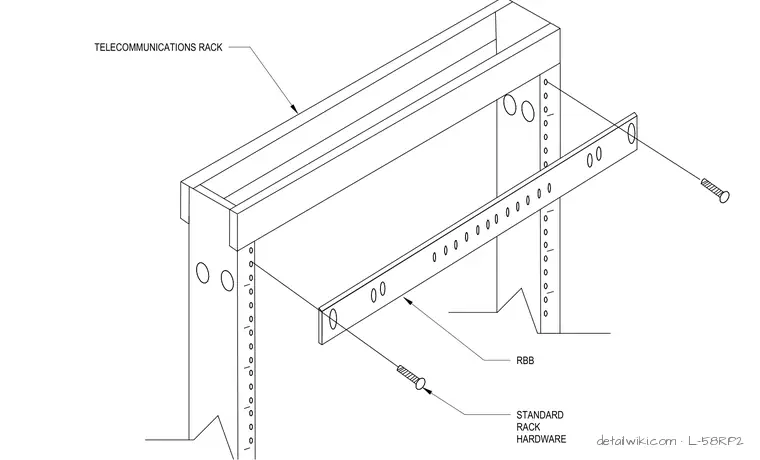

A telecommunications rack ground bar is secured to the rack vertical uprights using standard rack hardware. The rack ground bar, designated as RBB, aligns with pre-punched holes on the rack frame and is fastened with bolts on each end.
