Angular Aggregate and Landscape Drain Detail

Elements

About this detail

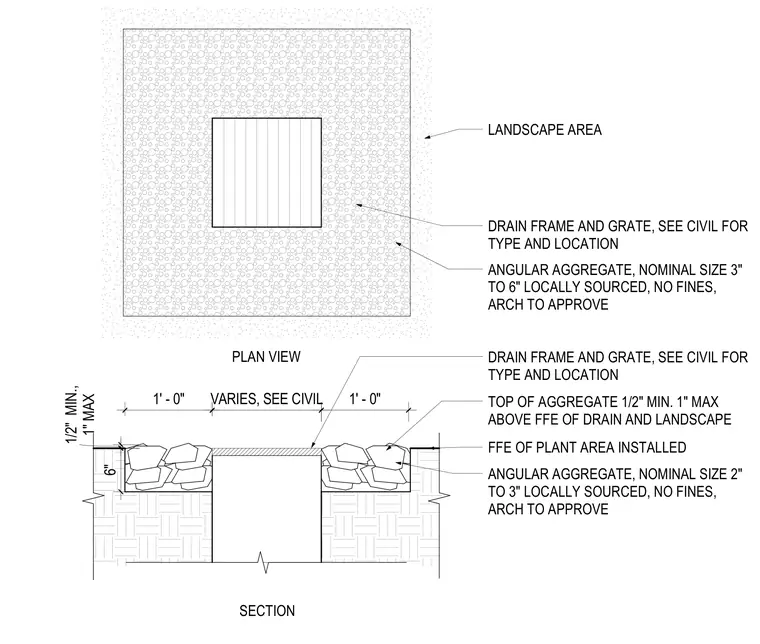

The assembly features locally sourced angular aggregate with no fines set around a drain frame and grate. The aggregate size transitions from nominal two to three inches up to three to six inches, with finished floor elevations subject to architect approval. The aggregate level sits one-half inch minimum to one inch maximum above the finished floor elevation of the drain and landscape area, with a six-inch depth. The drain frame and type are determined per civil engineering requirements.
