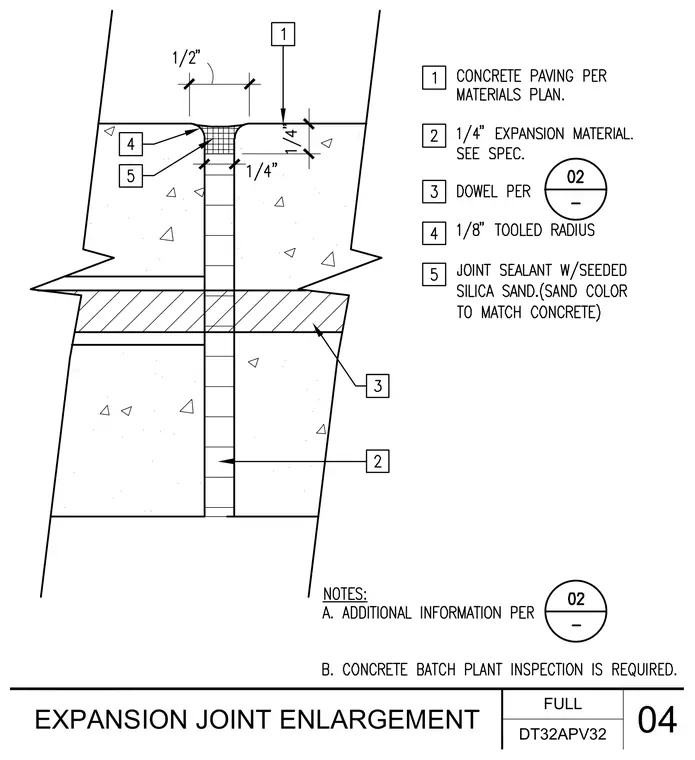

Concrete paving slabs meet at a half-inch expansion joint containing quarter-inch expansion material and a dowel per detail 02. The joint features a one-eighth-inch tooled radius at the top edge and is finished with joint sealant and seeded silica sand matched in color to the concrete. Concrete batch plant inspection is required.
