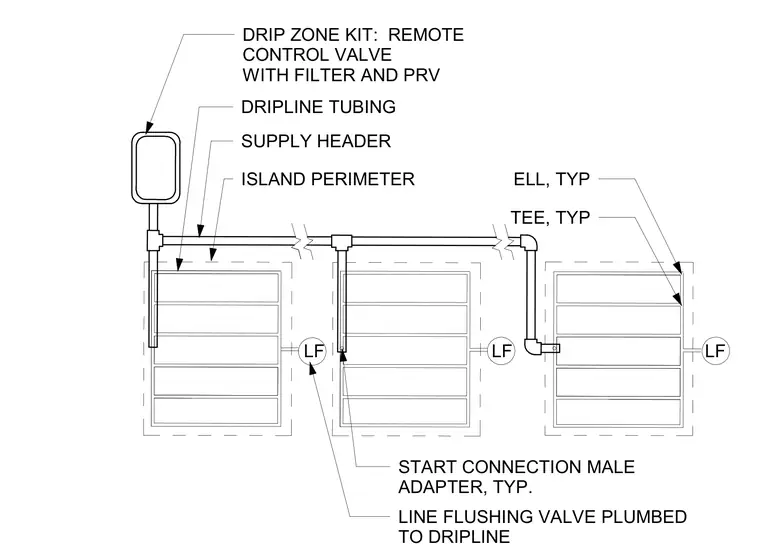

A drip zone kit containing a remote control valve with an integrated filter and pressure regulating valve connects to a supply header that feeds dripline tubing across the island perimeter. Line flushing valves are plumbed directly to the dripline supply header. Typical start connection male adapters, elbows, and tees route the distribution piping throughout the planting beds.
DRIPLINE TUBING DRIP ZONE KIT: REMOTE CONTROL VALVE WITH FILTER AND PRV LINE FLUSHING VALVE PLUMBED TO DRIPLINE SUPPLY HEADER ISLAND PERIMETER START CONNECTION MALE ADAPTER, TYP. LF LF LF ELL, TYP TEE, TYP
