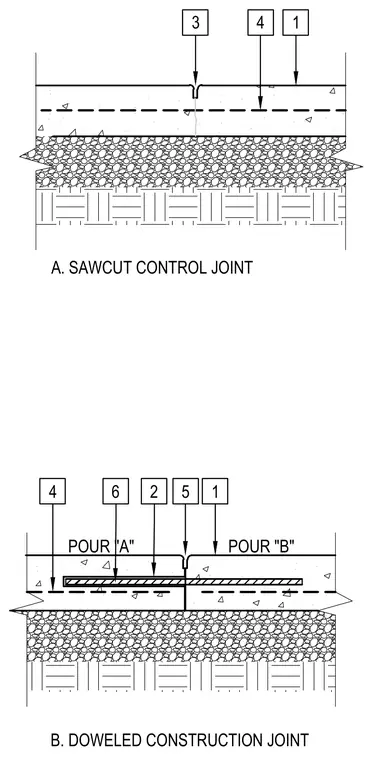

A doweled construction joint and a sawcut control joint are installed in a concrete slab-on-grade assembly. The doweled construction joint connects Pour A and Pour B with a smooth dowel bar passing through the vertical joint face to allow horizontal movement while providing load transfer. A sealant-filled sawcut control joint is formed in the slab surface to accommodate shrinkage cracking. The concrete slab rests on a compacted aggregate base course and subgrade.
B. DOWELED CONSTRUCTION JOINT A. SAWCUT CONTROL JOINT POUR "A" POUR "B" 3 4 1 4 1 2 5 6
