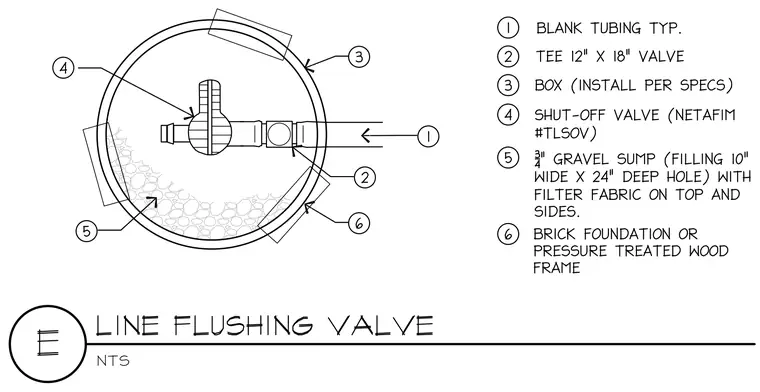

A line flushing valve assembly is housed within a protective box installed per specifications. Blank tubing connects to a tee valve and a Netafim shut-off valve. A three-quarter-inch gravel sump fills a ten-inch wide by twenty-four-deep hole, wrapped with filter fabric on top and sides. The box rests on a brick foundation or pressure treated wood frame.
