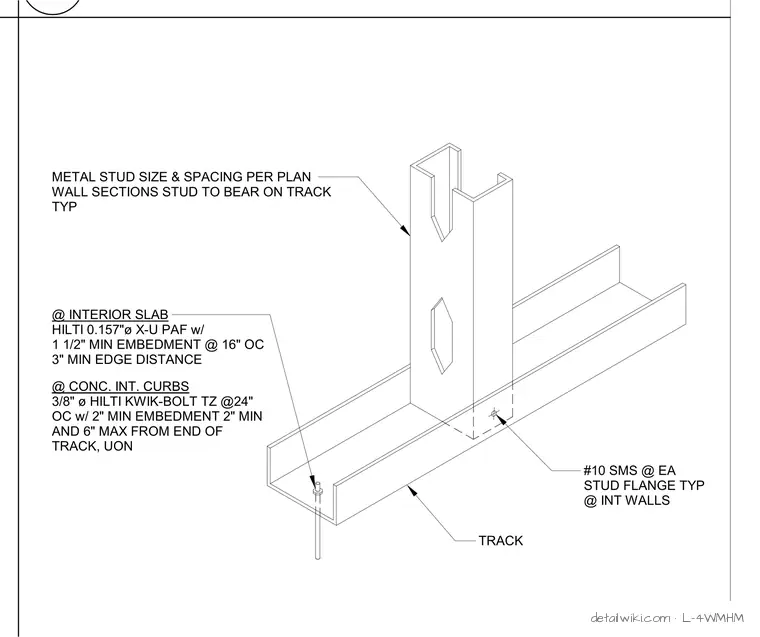

Cold-formed steel studs bear directly on a continuous metal track with sizes and spacings determined by wall section plans. At interior slabs, the track is anchored using Hilti 0.157-inch-diameter X-U powder-actuated fasteners spaced at 16 inches on center with a 1 1/2-inch minimum embedment and a 3-inch minimum edge distance. At concrete interior curbs, the track is secured with 3/8-inch-diameter Hilti Kwik-Bolt TZ expansion anchors spaced at 24 inches on center, requiring a 2-inch minimum embedment and positioned between 2 inches minimum and 6 inches maximum from the end of the track unless otherwise noted. Each stud flange at interior walls connects to the track using number 10 sheet metal screws typical.
METAL STUD SIZE & SPACING PER PLAN WALL SECTIONS STUD TO BEAR ON TRACK TYP #10 SMS @ EA STUD FLANGE TYP @ INT WALLS TRACK @ CONC. INT. CURBS 3/8" ø HILTI KWIK-BOLT TZ @24" OC w/ 2" MIN EMBEDMENT 2" MIN AND 6" MAX FROM END OF TRACK, UON @ INTERIOR SLAB HILTI 0.157"ø X-U PAF w/ 1 1/2" MIN EMBEDMENT @ 16" OC 3" MIN EDGE DISTANCE
