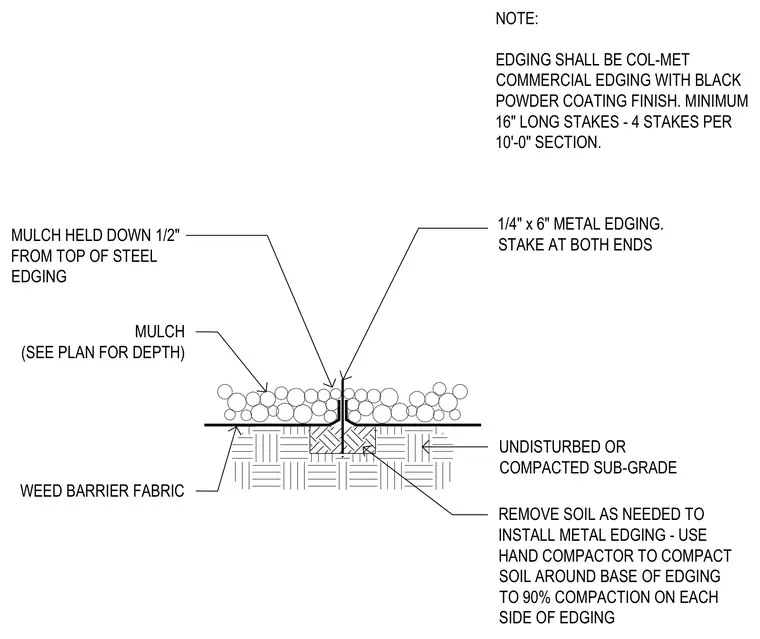

A quarter-inch by six-inch commercial steel edging with a black powder coating finish rests on undisturbed or compacted sub-grade. Soil is removed as needed for installation, and a hand compactor compresses the soil around the base of the edging to ninety percent compaction on each side. Four minimum-sixteen-inch-long stakes secure each ten-foot section, with stakes placed at both ends. Weed barrier fabric extends beneath the mulch layer, which is held down one-half inch from the top of the steel edging.
1/4" x 6" METAL EDGING. STAKE AT BOTH ENDS WEED BARRIER FABRIC NOTE: EDGING SHALL BE COL-MET COMMERCIAL EDGING WITH BLACK POWDER COATING FINISH. MINIMUM 16" LONG STAKES - 4 STAKES PER 10'-0" SECTION. MULCH HELD DOWN 1/2" FROM TOP OF STEEL EDGING UNDISTURBED OR COMPACTED SUB-GRADE REMOVE SOIL AS NEEDED TO INSTALL METAL EDGING - USE HAND COMPACTOR TO COMPACT SOIL AROUND BASE OF EDGING TO 90% COMPACTION ON EACH SIDE OF EDGING MULCH (SEE PLAN FOR DEPTH)
