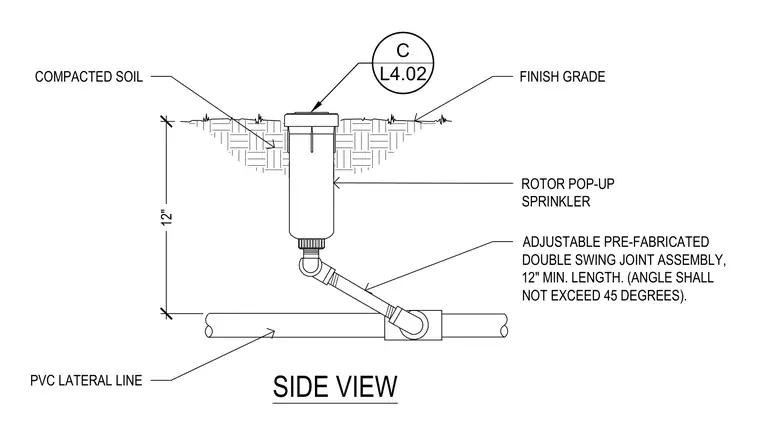

A rotor pop-up sprinkler is installed flush with the finish grade in compacted soil and connected to a PVC lateral line below. The connection utilizes an adjustable pre-fabricated double swing joint assembly with a twelve inch minimum length, maintaining an angle not exceeding forty-five degrees.
COMPACTED SOIL FINISH GRADE ROTOR POP-UP SPRINKLER ADJUSTABLE PRE-FABRICATED DOUBLE SWING JOINT ASSEMBLY, 12" MIN. LENGTH. (ANGLE SHALL NOT EXCEED 45 DEGREES). SIDE VIEW 12" PVC LATERAL LINE C L4.02
