A cold-formed steel stud or joist connects to a vertical framing member with a typical coped flange secured by three number ten sheet metal screws to each stud. A continuous four-inch by eighteen-gauge C-stud is anchored above with two number eight sheet metal screws to each stud or joist where required. Stud and joist sizes and spacings are determined per structural plans.

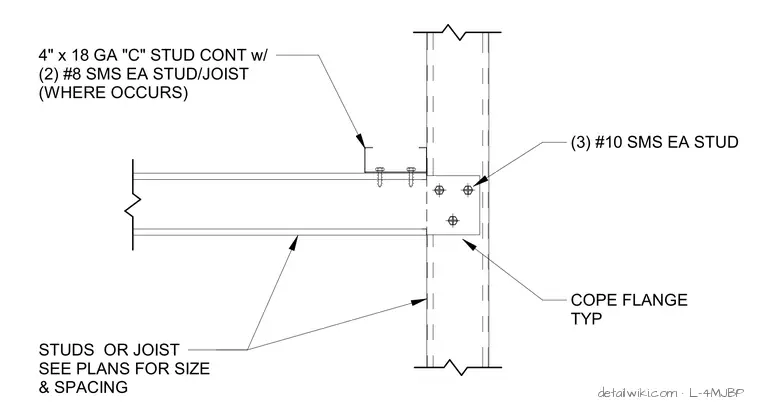

(3) #10 SMS EA STUD COPE FLANGE TYP STUDS OR JOIST SEE PLANS FOR SIZE & SPACING 4" x 18 GA "C" STUD CONT w/ (2) #8 SMS EA STUD/JOIST (WHERE OCCURS)
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
