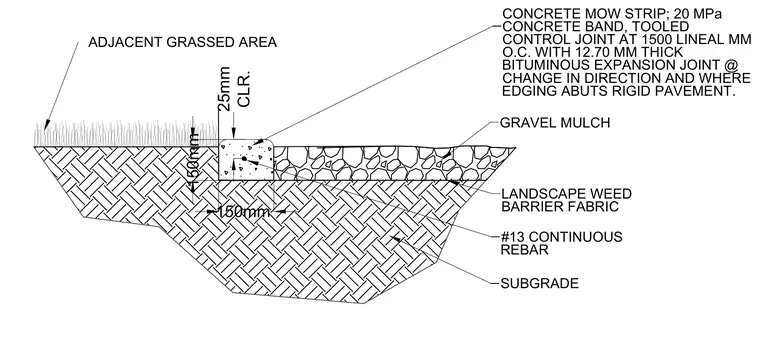

This concrete mow strip and edge band consists of a 20 MPa concrete band measuring 150 millimeters by 150 millimeters, reinforced with number 13 continuous rebar and detailed with a tooled control joint at 1500 lineal millimeters on center. A 12.70 millimeter thick bituminous expansion joint is provided at changes in direction and wherever the edging abuts rigid pavement. The concrete curb sits on prepared subgrade adjacent to a grassed area with a 25 millimeter clearance, bordered on the opposite side by gravel mulch laid over landscape weed barrier fabric.
#13 CONTINUOUS REBAR GRAVEL MULCH SUBGRADE LANDSCAPE WEED BARRIER FABRIC CONCRETE MOW STRIP; 20 MPa CONCRETE BAND, TOOLED CONTROL JOINT AT 1500 LINEAL MM O.C. WITH 12.70 MM THICK BITUMINOUS EXPANSION JOINT @ CHANGE IN DIRECTION AND WHERE EDGING ABUTS RIGID PAVEMENT. ADJACENT GRASSED AREA 25mm CLR. 150mm 150mm
