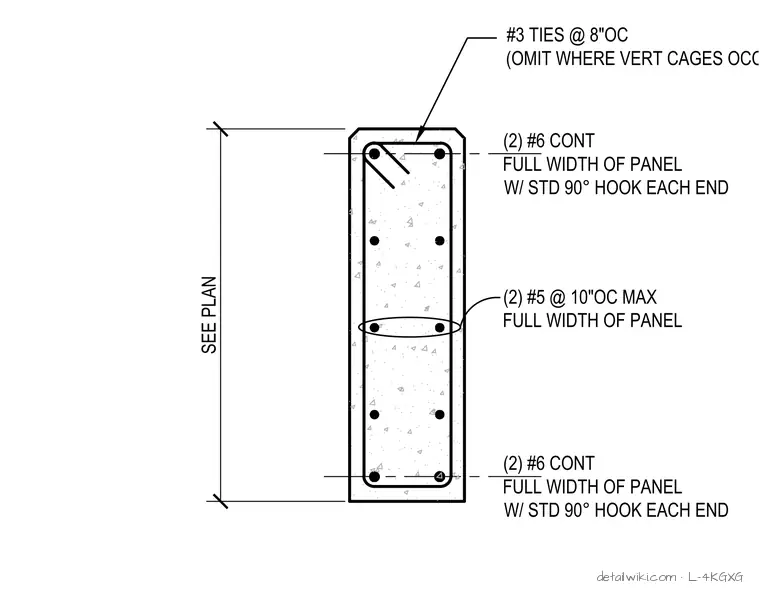

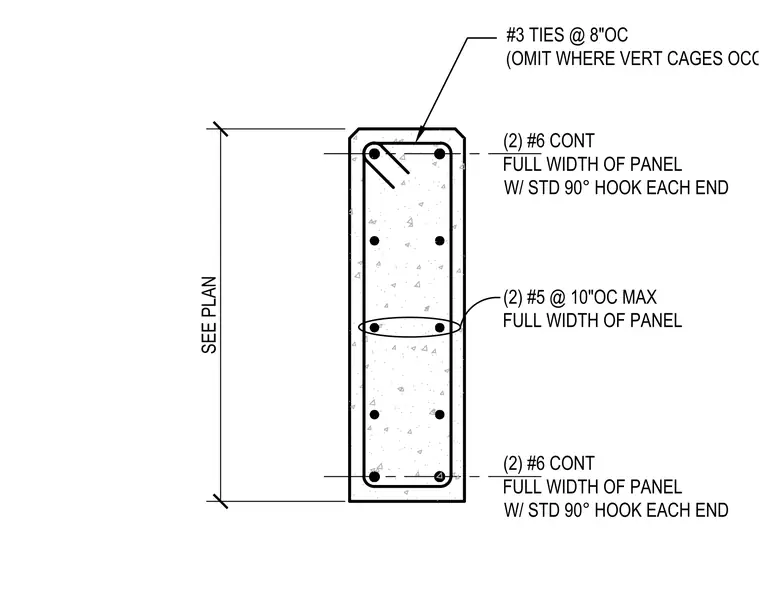

Horizontal reinforcement within the concrete wall panel consists of two number six continuous bars at the top and bottom, each with standard ninety-degree hooks at both ends. Intermediate horizontal reinforcement comprises two number five bars spaced at ten inches on center maximum across the full width of the panel. Number three ties are spaced at eight inches on center, omitting these ties where vertical rebar cages occur. Overall panel thickness is sized per plan.
Text on the drawing
SEE PLAN (2) #5 @ 10"OC MAX FULL WIDTH OF PANEL #3 TIES @ 8"OC (OMIT WHERE VERT CAGES OCCUR) (2) #6 CONT FULL WIDTH OF PANEL W/ STD 90° HOOK EACH END (2) #6 CONT FULL WIDTH OF PANEL W/ STD 90° HOOK EACH END
