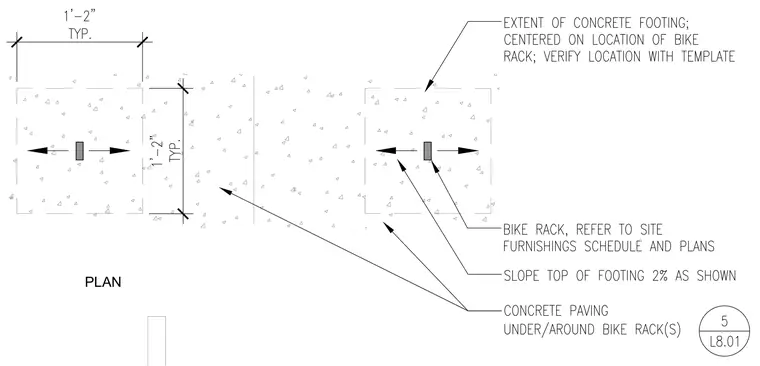

A bike rack is anchored in a concrete footing surrounded by concrete paving, with the footing typically measuring 1'-2" by 1'-2" and centered on the bike rack location with a 2% slope on top. A template is required to verify the exact location of the anchorage. The bike rack itself is specified per the site furnishings schedule and plans.
