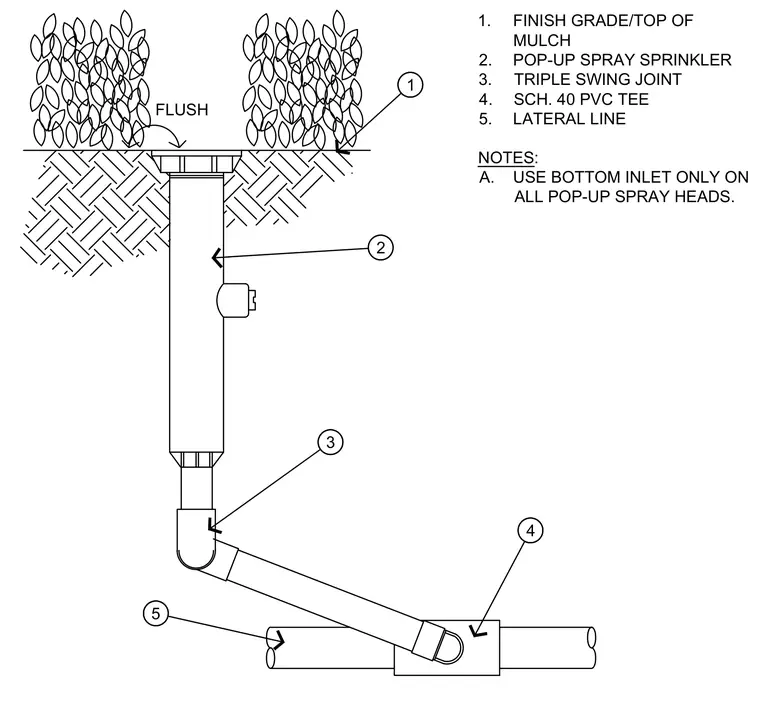

A pop-up spray sprinkler sits flush with the finish grade and top of mulch. The sprinkler body connects to a triple swing joint, which feeds into a Schedule 40 PVC tee on the lateral line. The bottom inlet must be used exclusively on all pop-up spray heads.
FLUSH 1. FINISH GRADE/TOP OF MULCH 2. POP-UP SPRAY SPRINKLER 3. TRIPLE SWING JOINT 4. SCH. 40 PVC TEE 5. LATERAL LINE NOTES: A. USE BOTTOM INLET ONLY ON ALL POP-UP SPRAY HEADS. 1 2 3 4 5
