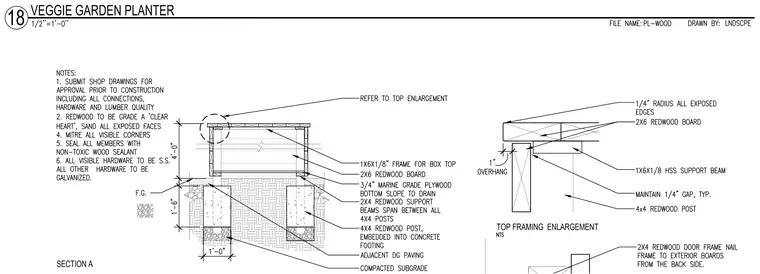

A raised wooden vegetable garden planter is supported by four-by-four redwood posts embedded into concrete footings over compacted subgrade with adjacent decomposed granite paving. The planter box features two-by-six redwood boards and a one-by-six-by-one-eighth hollow structural section support beam, with a three-quarter-inch marine-grade plywood bottom sloped to drain. The top framing enlargement details a one-inch overhang with a one-quarter-inch radius on all exposed redwood edges and a one-quarter-inch gap maintained typically. General notes specify Grade A clear heart redwood, mitered visible corners, non-toxic wood sealant, stainless steel visible hardware, and galvanized hidden hardware.
