Toro Drip Zone Kit

Materials

About this detail

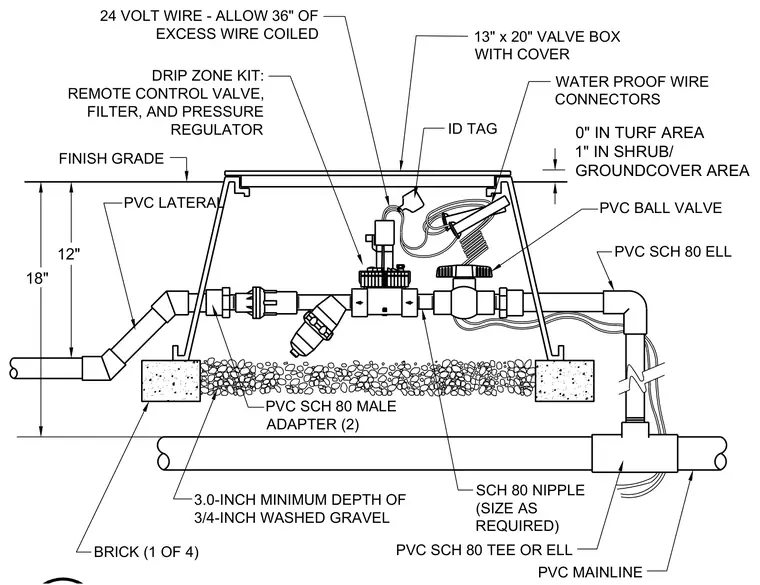

An irrigation drip zone kit is housed inside a thirteen-inch by twenty-inch valve box with a cover, set atop a minimum three-inch depth of three-quarter-inch washed gravel supported by four bricks. The assembly comprises a remote control valve, filter, pressure regulator, PVC ball valve, Schedule eighty PVC nipples, male adapters, tees or ells, and lateral lines tied to a PVC mainline. Waterproof wire connectors join twenty-four volt control wires with thirty-six inches of excess coiled wire and an identification tag. The valve box cover sits level with the finish grade in turf areas or raised one inch in shrub and groundcover areas.
