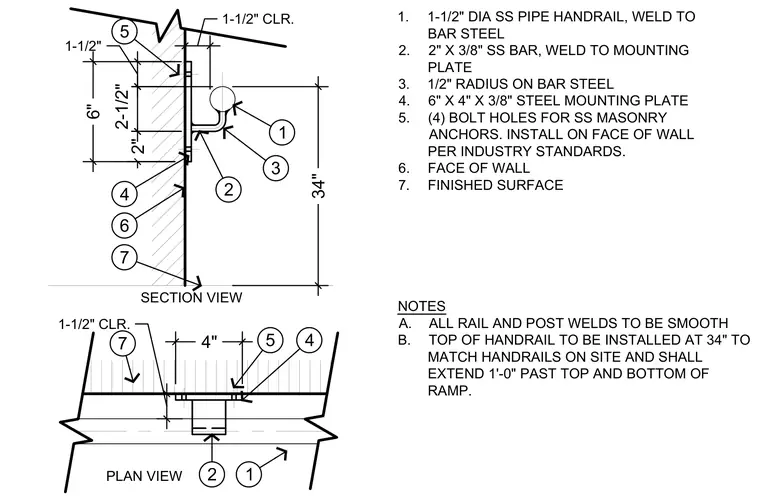

A one and one-half inch diameter stainless steel pipe handrail is welded to a two-inch by three-eighths inch stainless steel bar featuring a one-half inch radius. This support bar is welded to a six-inch by four-inch by three-eighths inch steel mounting plate. The mounting plate contains four bolt holes for stainless steel masonry anchors to secure the assembly on the face of the wall. All rail and post welds must be ground smooth. The top of the handrail is installed at thirty-four inches above the finished surface to match existing site conditions and extends one foot past the top and bottom of the ramp.
1-1/2" CLR. 1. 1-1/2" DIA SS PIPE HANDRAIL, WELD TO BAR STEEL 2. 2" X 3/8" SS BAR, WELD TO MOUNTING PLATE 3. 1/2" RADIUS ON BAR STEEL 4. 6" X 4" X 3/8" STEEL MOUNTING PLATE 5. (4) BOLT HOLES FOR SS MASONRY ANCHORS. INSTALL ON FACE OF WALL PER INDUSTRY STANDARDS. 6. FACE OF WALL 7. FINISHED SURFACE PLAN VIEW SECTION VIEW NOTES A. ALL RAIL AND POST WELDS TO BE SMOOTH B. TOP OF HANDRAIL TO BE INSTALLED AT 34" TO MATCH HANDRAILS ON SITE AND SHALL EXTEND 1'-0" PAST TOP AND BOTTOM OF RAMP. 1 2 6 1 2 3 1-1/2" CLR. 4 34" 1-1/2" 2" 6" 4" 2-1/2" 7 4 5 7 5
