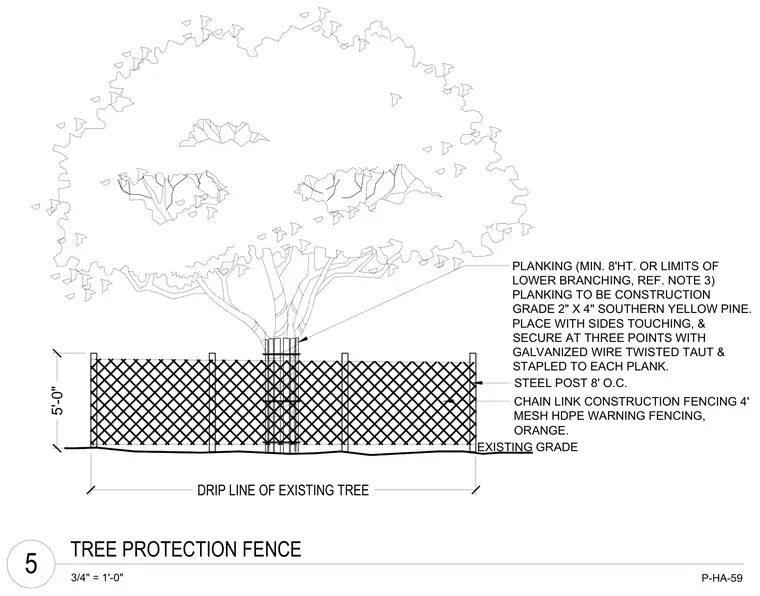

Tree protection fence installed at the drip line of an existing tree featuring vertical trunk protection and perimeter barrier fencing. The trunk is wrapped in minimum eight-foot high construction grade two-by-four Southern Yellow Pine planks placed with sides touching, secured at three points with galvanized wire twisted taut and stapled to each plank. Perimeter barrier consists of steel posts spaced eight feet on center supporting chain link construction fencing and four-foot mesh orange high-density polyethylene warning fencing set above existing grade.
TREE PROTECTION FENCE 3/4" 1'-0" 5'-0" EXISTING GRADE DRIP LINE OF EXISTING TREE PLANKING (MIN. 8'HT. OR LIMITS OF LOWER BRANCHING, REF. NOTE 3) PLANKING TO BE CONSTRUCTION GRADE 2" X 4" SOUTHERN YELLOW PINE. PLACE WITH SIDES TOUCHING, & SECURE AT THREE POINTS WITH GALVANIZED WIRE TWISTED TAUT & STAPLED TO EACH PLANK. STEEL POST 8' O.C. CHAIN LINK CONSTRUCTION FENCING 4' MESH HDPE WARNING FENCING, ORANGE. 5 P-HA-59
